Planing pontoon tube
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 21, 2010
Grant Date -
Dec 10, 2009
app pub date -
Jun 6, 2008
filing date -
Jun 6, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

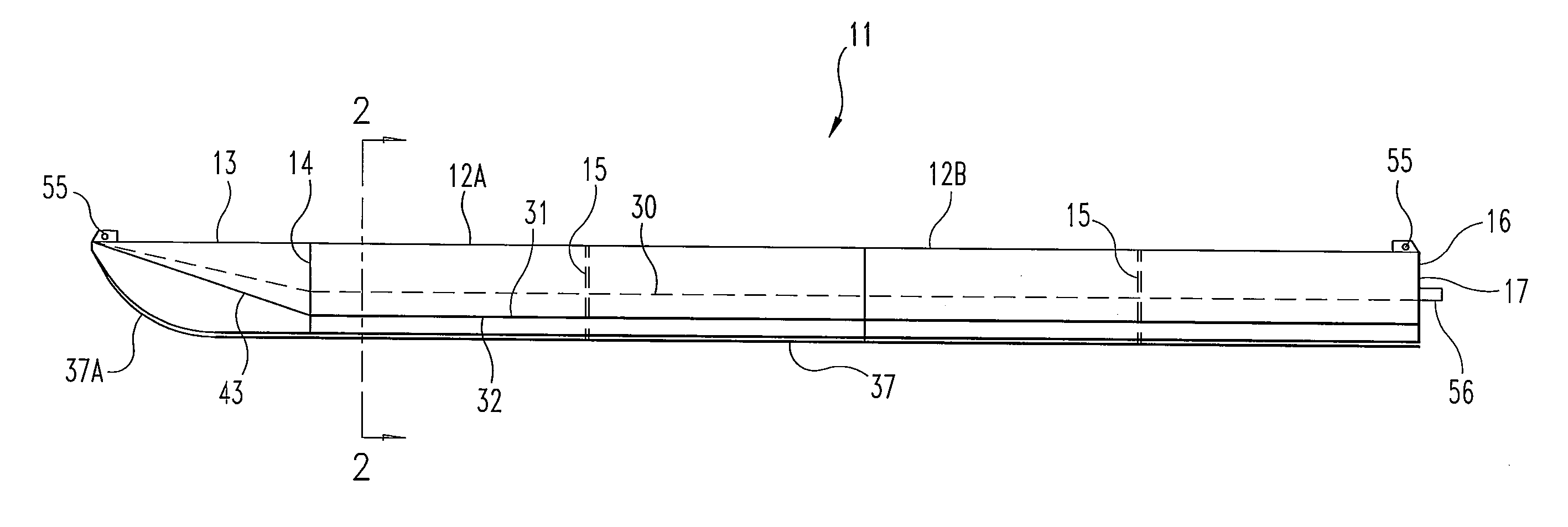

An improved water tight, chambered planing pontoon assembly incorporates a hollow shell with a cross sectional shape in the form of an upper portion and lower portion. The upper portion of the shape is generally semi-cylindrical extending downward and terminates with opposing chines extending the full length of the tube. The lower portion of the shape is formed by equal and opposing planing surfaces which extend upward at acute angles from a vertical center line, then turn outward, perpendicular to the vertical center line, meeting at the chines. The tube terminates on the bow end with an elongate semi-cone and on the opposite end with a water tight bulkhead. The upper and lower portions of the tube are formed of one homogeneous sheet of metal. The semi-cone with opposing chine portions is formed of one homogeneous sheet of metal.
First Claim
Other Claims data not available
