LAMP ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 3, 2009
app pub date -
May 26, 2009
filing date -
May 28, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

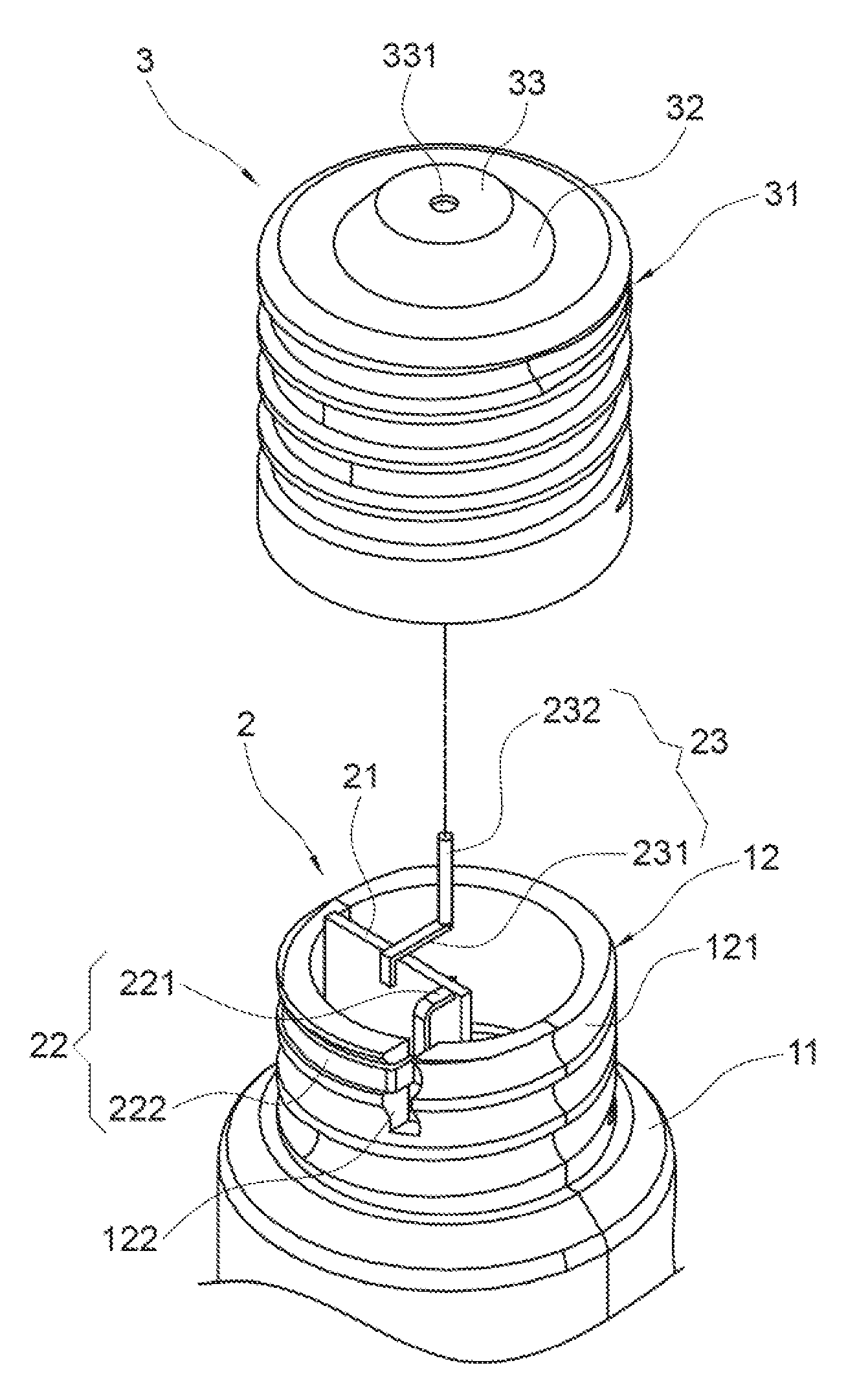

A lamp assembly includes a lamp body, a light emitting module and a joint. The lamp body has a housing which has a supporting portion formed on one end thereof, and the supporting portion has a hatch defined therein. The light emitting module includes a circuit board disposed in the supporting portion and electrically connected with a first electrode and a second electrode, wherein the first electrode passes through the hatch and is located on an outer surface of the supporting portion. The joint includes a metal shell, an insulator formed over the metal shell and a conducting plane disposed over the insulator. The metal shell and the supporting portion are combined with each other so that the metal shell is electrically connected with the first electrode and the second electrode is electrically connected with the conducting plane.
First Claim
Other Claims data not available
