Vacuum unit for steam sterilizer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 22, 2011
Grant Date -
Nov 26, 2009
app pub date -
May 23, 2008
filing date -
May 23, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

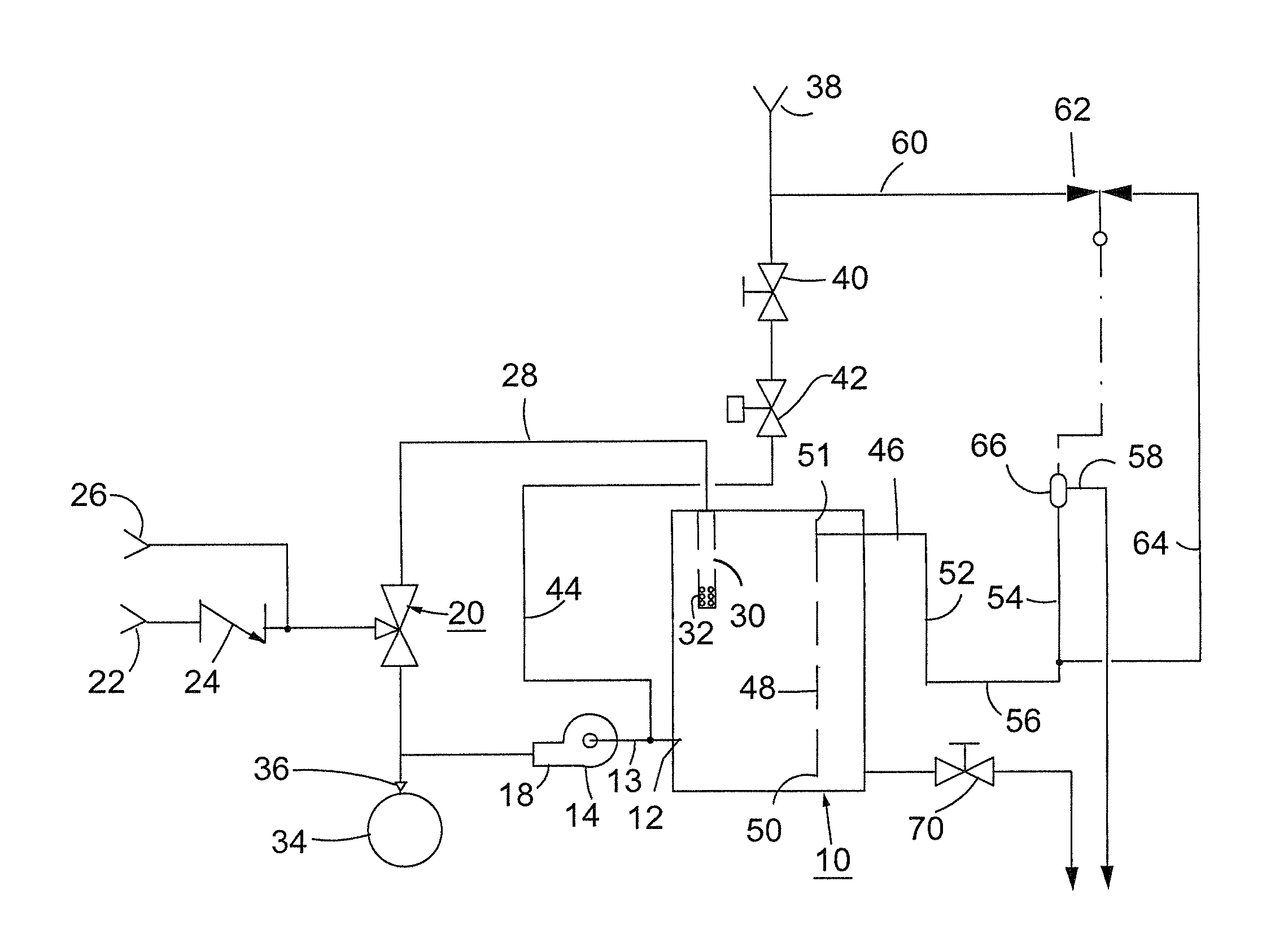

In a vacuum unit for use in drawing a vacuum on a steam sterilizer, a pump circulates water through an ejector and a reservoir. Fresh water is injected at the pump inlet to maintain a low temperature in the ejector so that it can operate efficiently. Excess water is taken from a location adjacent the bottom of the reservoir through an internal dip tube, and passed through a U-shaped conduit that serves as a condensate trap. To maintain the water discharge temperature below a predetermined level, fresh water is injected into the U-shaped conduit through a valve controlled by a temperature sensor downstream from the water injection point.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F04B Class
- 0 % this patent is cited more than
- 14 Age
