Water heater and method of operating a waterheater
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 12, 2009
app pub date -
May 9, 2008
filing date -
May 9, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

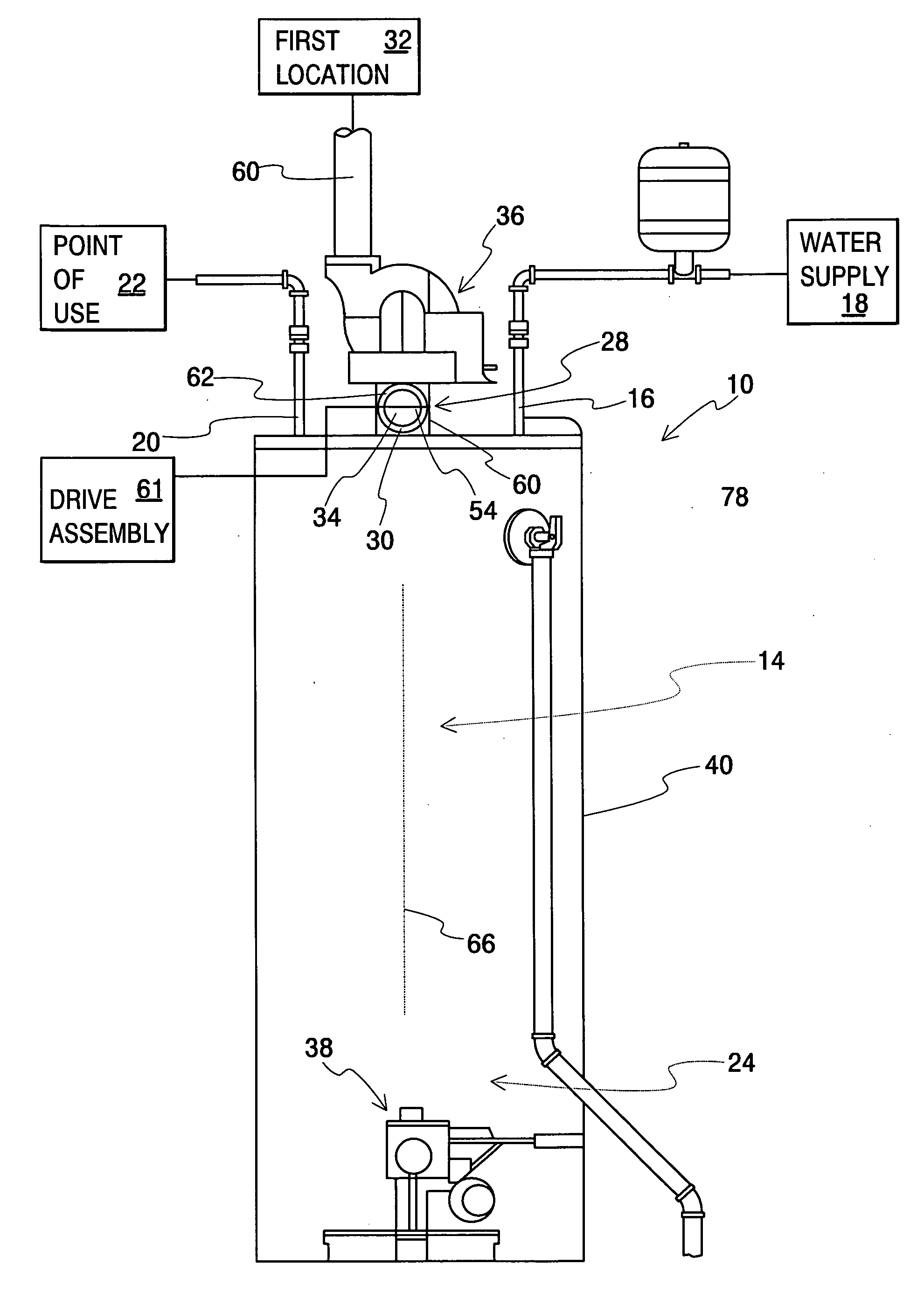

A water heater having of a tank defining a storage space for water. A heat source in a combustion chamber is operable to heat water in the storage space and has a first state and a heating state. A flue is part of a gas flow passage through which combustion gases are communicated towards a first location. A flue damper has closed and open states. A powered device in an on state induces flow of combustion gases from the combustion chamber towards the first location. A control is configured to: a) process a user input identifying a target output water temperature and generate a call for heat; and b) in response thereto i) cause the powered device to change from its first state; ii) cause the flue damper to change from its closed state towards its open state; and iii) cause the heat source to change from its first state into its heating state.
First Claim
Other Claims data not available
