HANDLE STRUCTURE WITH LOCKING UNIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 5, 2009
app pub date -
May 1, 2008
filing date -
May 1, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

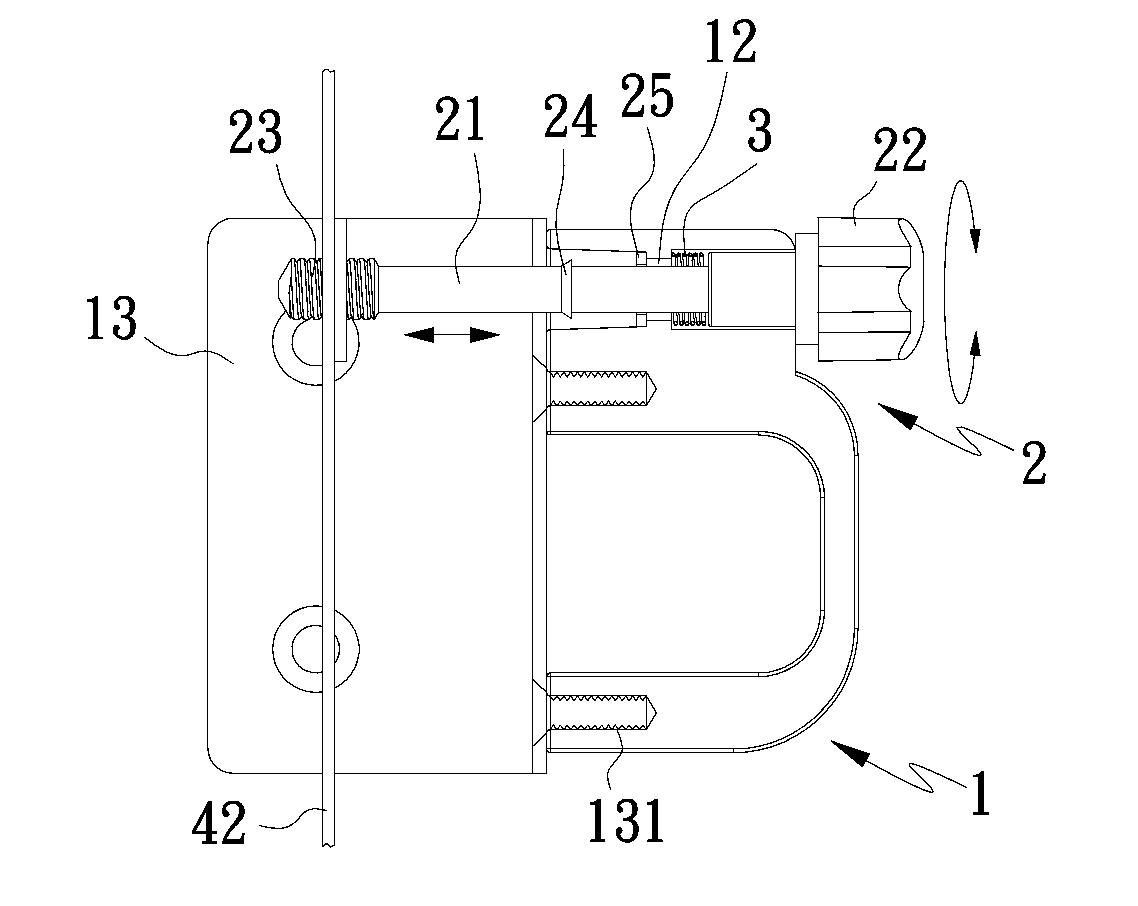

A handle structure with locking unit includes a handle having a hollow fitting section provided at a predetermined position, a locking unit movably coupled with the handle, and an elastic element fitted around the rod section and restricted within the fitting section. The locking unit includes a rod section fitted in the fitting section of the handle, an operating section located at an end of the rod section to outward protrude from a first end of the fitting section, and a threaded section located at another end of the rod section to outward protrude from a second end of the fitting section. An annular stop section is formed around the rod section to interfere with the fitting section. When a slidable carrier unit with the handle structure mounted thereto is in a fully inward pushed position, the operating section may be turned to lock or unlock the carrier unit.
First Claim
Other Claims data not available
