Workpiece clamping fixture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 19, 2013
Grant Date -
Sep 24, 2009
app pub date -
Feb 3, 2009
filing date -
Feb 4, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

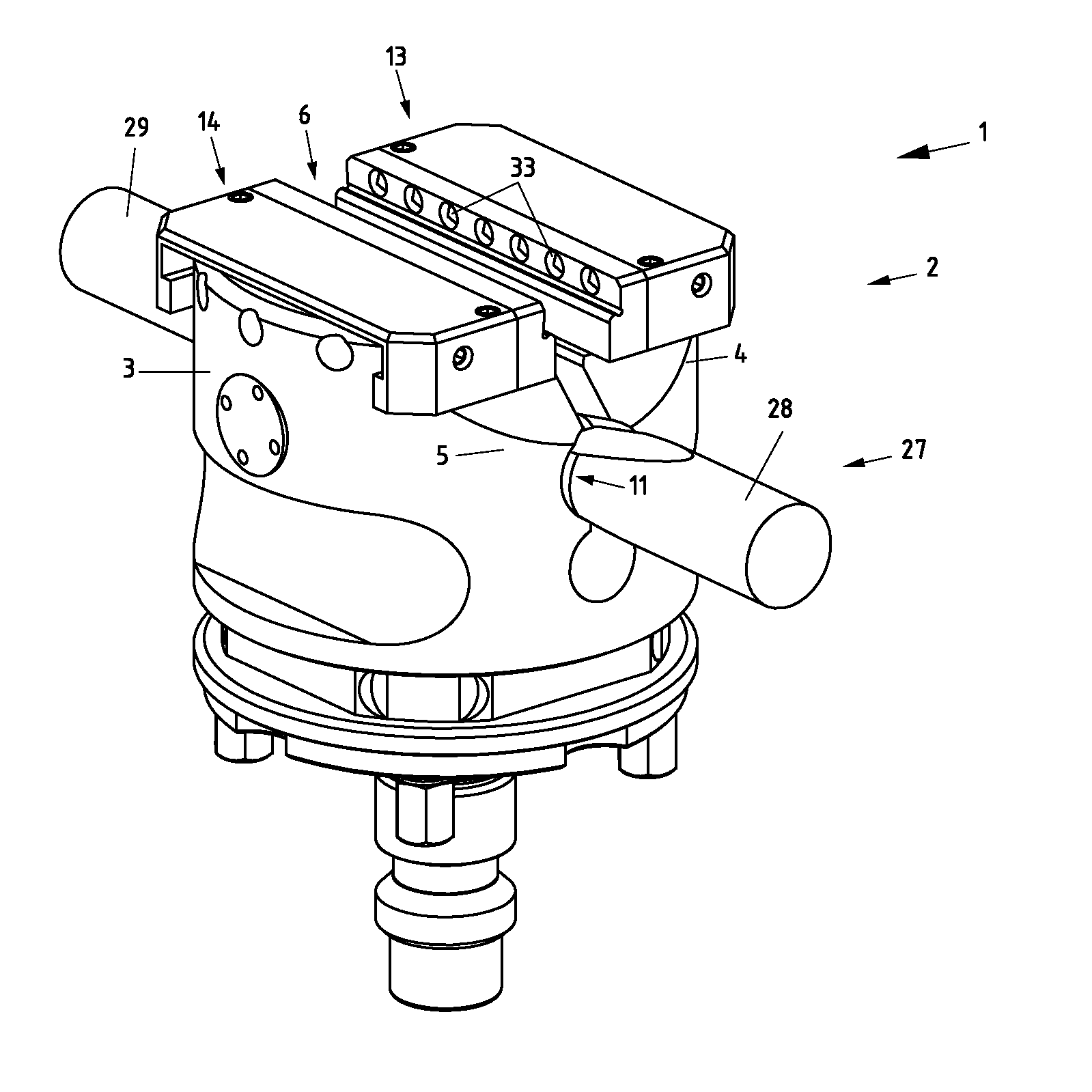

The clamping fixture (1) consists of a workpiece pallet (2) and an actuator (27). The workpiece pallet (2) comprises at least two clamping jaws (4,5) for clamping in place a workpiece, while the actuator (27) is provided for opening and closing the clamping jaws (4,5). By means of the actuator (27) the clamping jaws (4,5) are material-elastically excursionable to the extent that a workpiece, after release of the actuator (27), can be locked in place by the material-elastic restoring force of the clamping jaws (4,5). Preferably the workpiece pallet (2) comprises a main body (3) provided with a slot (6) defined on both sides by the clamping jaws (4,5). The clamping jaws (4,5) are material-elastic excursionable by means of the actuator (27) transversely to the slot (6). The clamping jaws (4,5) are provided with fitted jaws (13, 14) which in relation to each clamping jaw (4,5) can be shifted transversely to the slot (6).
