Wire Electric Discharge Machining Apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 24, 2009
app pub date -
Mar 22, 2007
filing date -
Mar 22, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

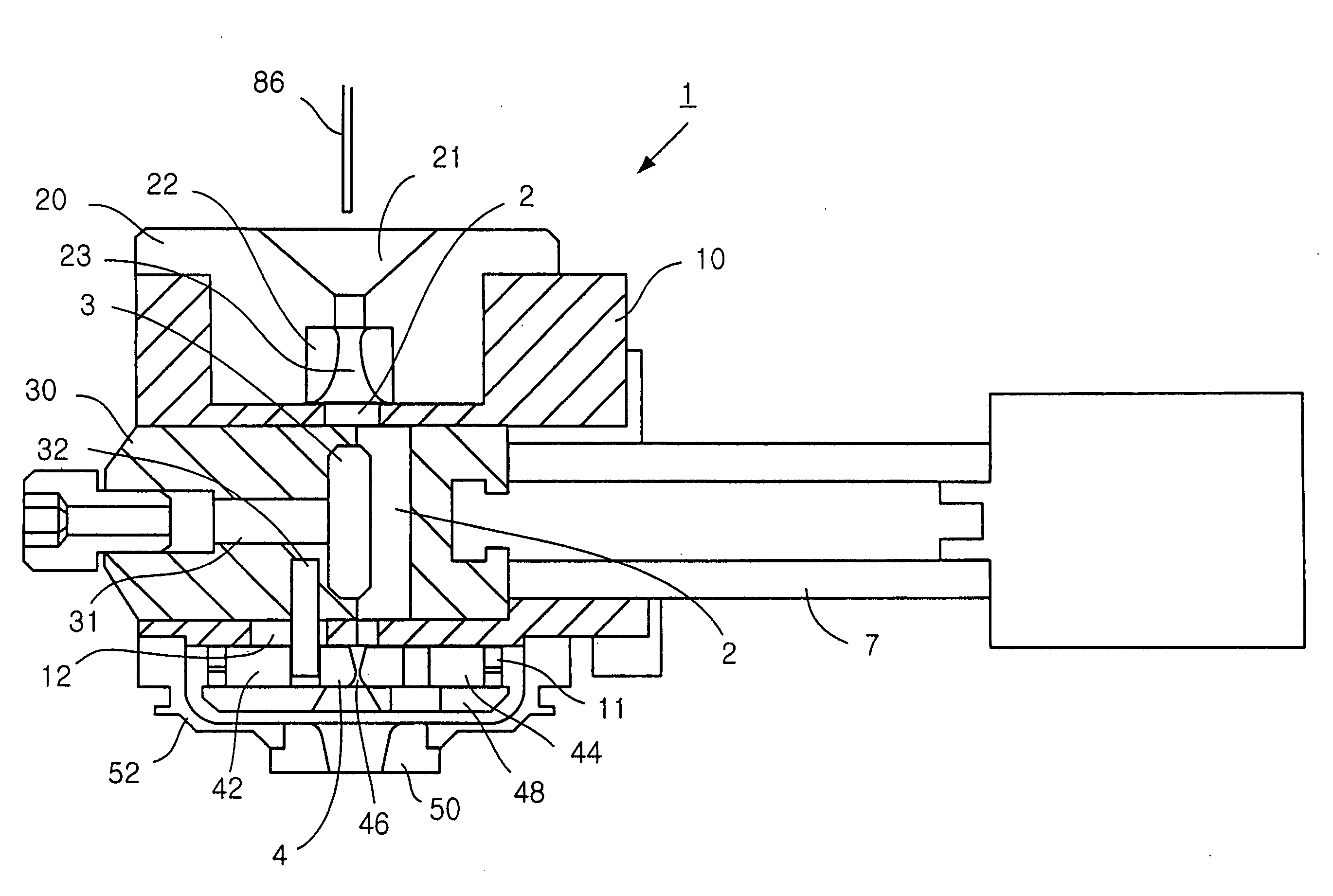

A wire electric discharge machining apparatus can select a split guide formed from a pair of guide pieces, or an unsplittable dice guide, as an upper wire guide. An upper wire guide assembly includes a housing configured to selectively store the split guide or an adapter that the dice guide fitted into, and an actuator configured to move at least one of the pair of guide pieces. When the split guide is selected, a guide pipe configured to form a fluid jet can be moved downward through the upper wire guide assembly. When the dice guide is selected, an AWT jet nozzle configured to form a fluid jet can be attached to the adapter. Further, a jacket can be attached to the housing, the jacket having a fluid inlet configured to introduce fluid to be supplied to the AWT jet nozzle.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP4266992 | Mar 22, 2006 |
| WO | A1 | WO2007119274 | Mar 22, 2007 |
| CN | B | CN101351291 | Mar 22, 2007 |
