Neutral section insulator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 22, 2010
Grant Date -
Sep 10, 2009
app pub date -
May 21, 2009
filing date -
Jun 4, 2003
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

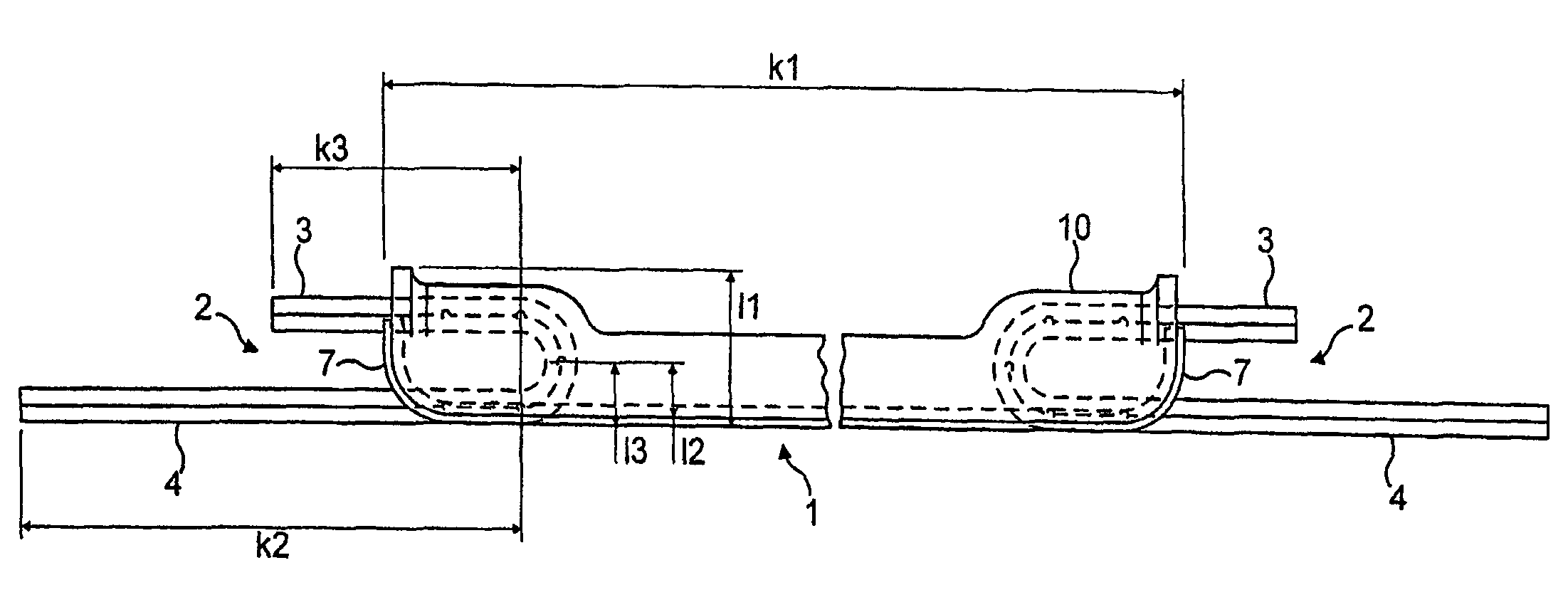

In a neutral section (1) for use with an overhead railway conductor line, which neutral section (1) is disposed between the ends of the conductor line when in use and comprises an insulator (10) to isolate the ends of the conductor line from each other, the neutral axis of the neutral section (1) being such that when the neutral section (1) is in use the neutral axis is aligned closely with the neutral axis of the conductors on its either side and the height of the insulator (10) is chosen so that the stiffness and the dynamic mass of the neutral section (1) closely match those of the conductors on its either side in both the vertical and horizontal planes.
First Claim
Other Claims data not available
