Rotary slide valve, in particular for hydraulic power assisted steering systems in motor vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 3, 2009
app pub date -
May 3, 2006
filing date -
May 3, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

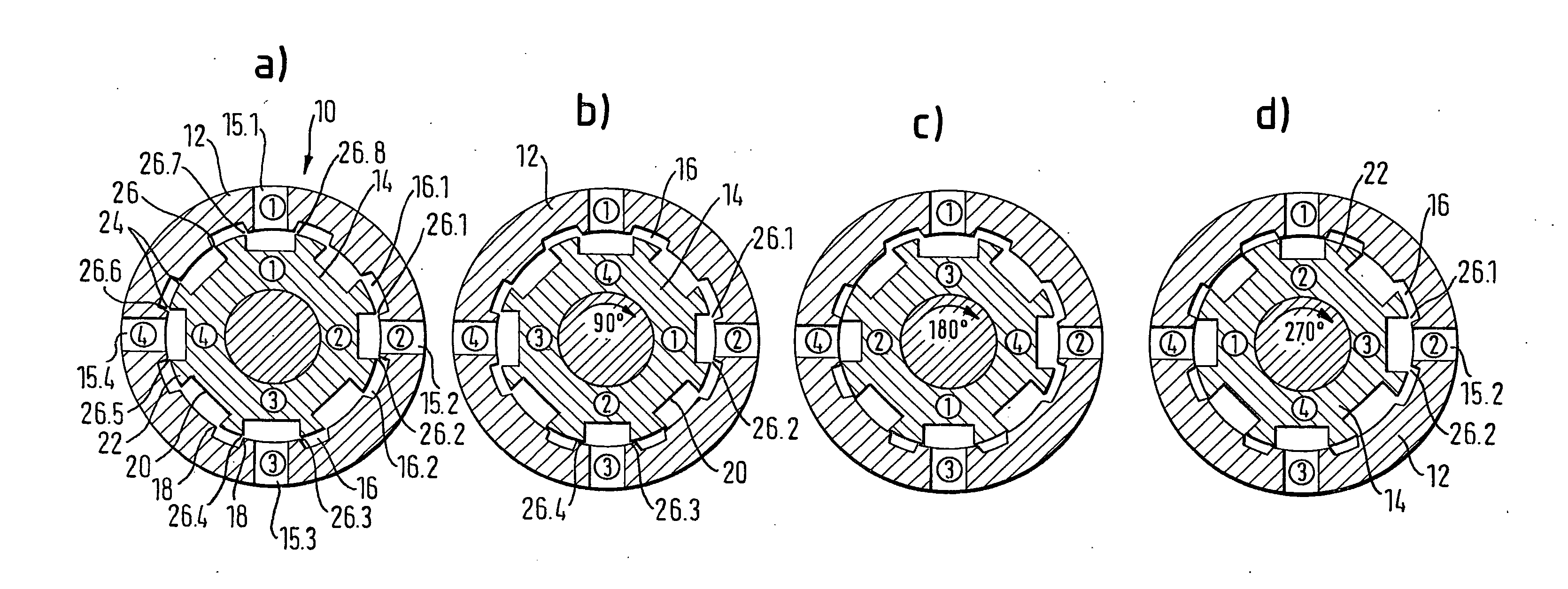

A rotary slide valve, in particular for hydraulic power-assisted steering systems in motor vehicles, having a control bush and a rotary slide which is adapted to rotate within the control bush about a common longitudinal axis, the rotary slide and the control bush including a plurality of control edges, of which one control edge each of the control bush forms control gaps with a nearest control edge of the rotary slide, and adjacent control gaps of supply ports for a hydraulic fluid determining a control geometry, is characterized in that the rotary slide valve has at least two different control geometries.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62D Class
- 0 % this patent is cited more than
- 16 Age
