Ratchet Wrench
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 6, 2009
app pub date -
Feb 6, 2008
filing date -
Feb 6, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

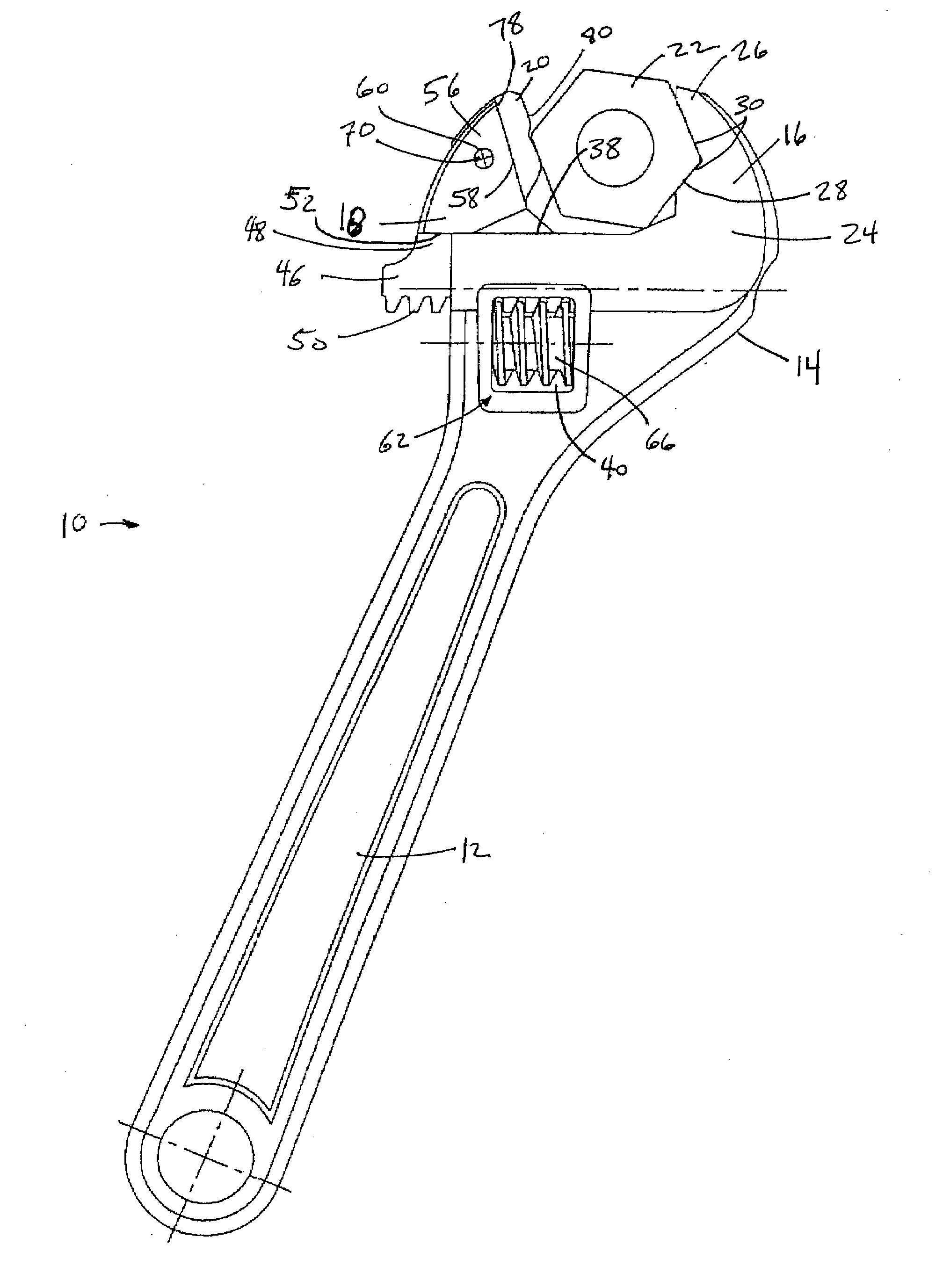

A wrench adapted to engage a workpiece to drive the workpiece rotationally. In one embodiment, the wrench comprises a head, a first jaw, and a second jaw. The first jaw carried by the head and forms a first workpiece engaging surface. The second jaw is carried by the head and forms a second workpiece engaging surface such that (i) if the head is rotated about a workpiece disposed between the first workpiece engaging surface and the second workpiece engaging surface in a first rotational direction, the first workpiece engaging surface and the second workpiece engaging surface rotationally drive the workpiece in the first rotational direction, and (ii) if the head is rotated about the workpiece disposed between the first workpiece engaging surface and the second workpiece engaging surface in a second rotational direction opposite from the first rotational direction, the first workpiece engaging surface and the second workpiece engaging surface slide along the workpiece as the head rotates in the second rotational direction independent from the workpiece.
First Claim
Other Claims data not available
