Locking device of a bicycle brake cable
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 6, 2009
app pub date -
Feb 1, 2008
filing date -
Feb 1, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

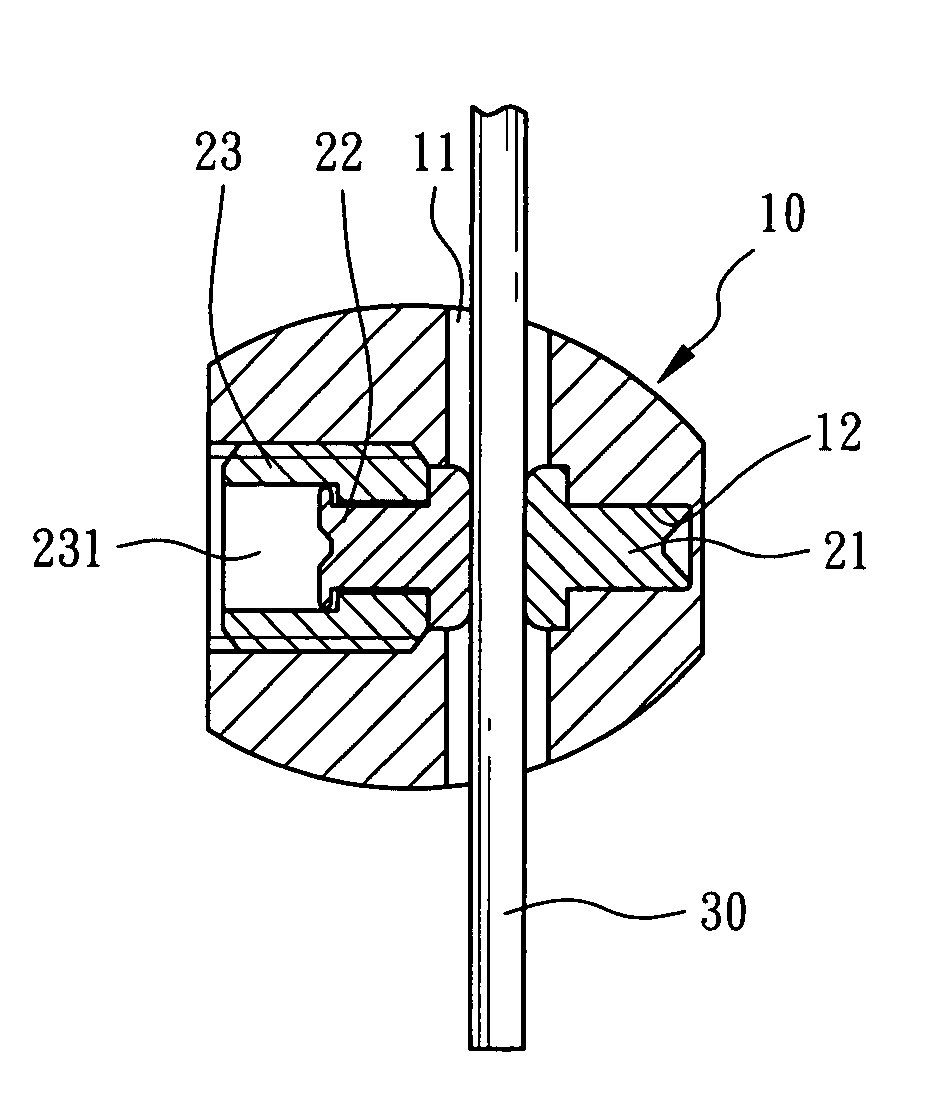

A locking device of a bicycle brake cable includes a locking portion including a through hole defined therein. The locking portion has a hole and a threaded hole defined therein and communicating with the through hole, wherein the threaded hole extends to an outer periphery of the locking portion. A clamping device is mounted in the locking portion. The clamping device includes a first clamping block, a second clamping block and a drive piece. The first clamping block is partially and securely received in the hole and extending into the through hole. The second clamping block is and pivotally mounted to the drive piece and faces the first clamping block, the drive piece having a threaded outer periphery and screwed into the threaded hole with the second clamping block, the drive piece drives the second clamping block moved toward the first clamping block for securely clamping the brake cable.
First Claim
Other Claims data not available
