Oscillating-foil type underwater propulsor with a joint
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 29, 2010
Grant Date -
Jul 30, 2009
app pub date -
Oct 9, 2008
filing date -
Jan 24, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

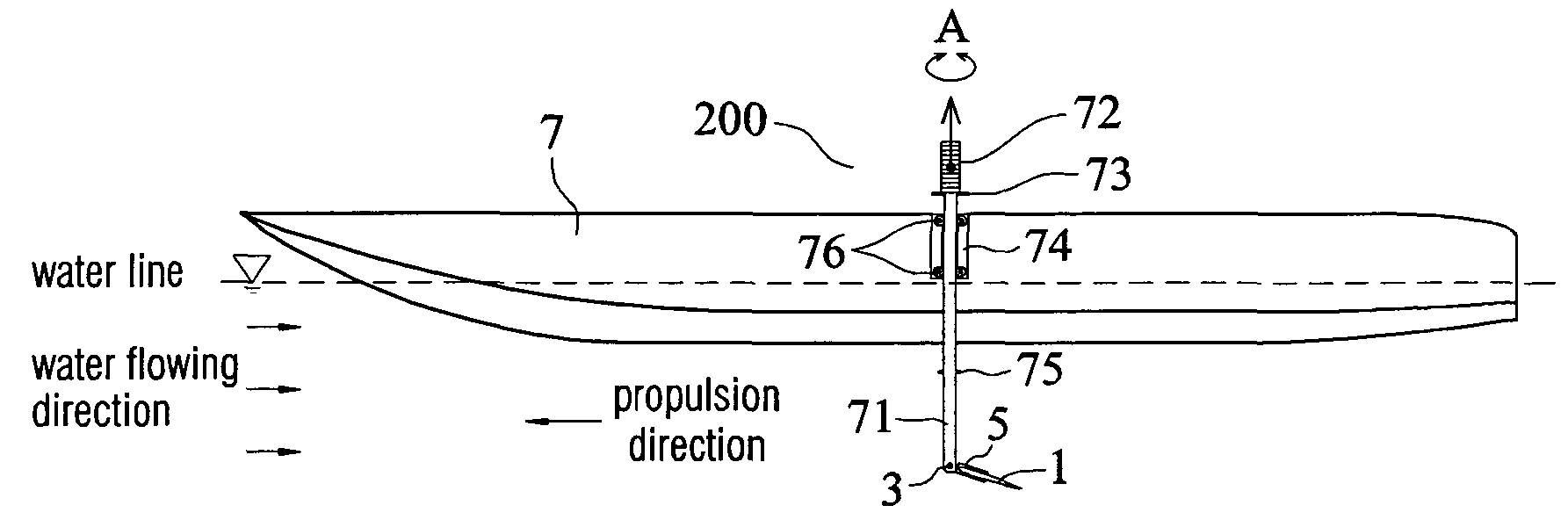

An oscillating-foil type underwater propulsor with a joint provided in the invention, the propulsor including a streamline foil having a foil surface being parallel to a water surface and a span length of at least twice as long as an average chord length of the streamline foil, and a heaving mechanism undergoing heaving motion perpendicular to a propulsion direction of the propulsor and having a transmission section, wherein the transmission section is pivotally connected to the streamline foil to form a joint, the joint being provided at the middle of the span length and having a rotation center located within a circular area, which has a radius of one third of the average chord length and is centered at the point one third of the average chord length ahead of the lifting center of the streamline foil.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| TW | B | TWI340711 | Jan 24, 2008 |
International Classification(s)
- 2008 Application Filing Year
- B63H Class
- 298 Applications Filed
- 210 Patents Issued To-Date
- 70.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B63H Class
- 6.85 % this patent is cited more than
- 15 Age
