BARCODE PRINTING DEVICE AND BARCODE PRINTING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 30, 2009
app pub date -
Jan 20, 2009
filing date -
Jan 25, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

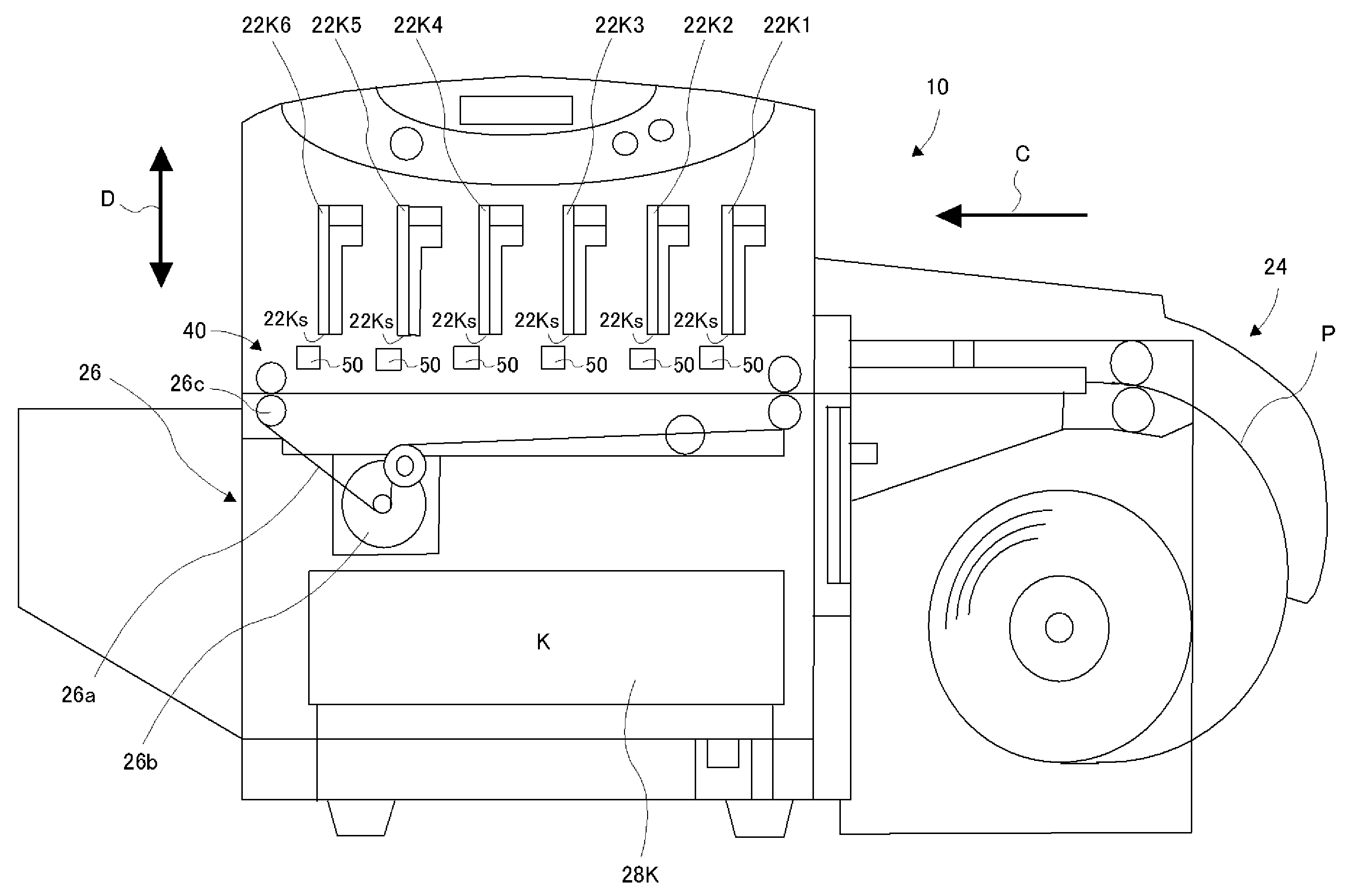

A barcode printing device, which forms one image using plural same-color heads arranged in parallel, generates a barcode in which the effect of variations in landing position accuracy, caused by variations in the conveyance, is minimized. The barcode printing device comprises plural line heads 22K1-22K6, which eject same-color ink and are arranged in parallel with each other, and the plural line heads work together to print plural lines configuring each bar of a barcode while conveying recording paper relatively to the plural line heads. In this case, when each of plural bars configuring a barcode is formed by three or more successive lines, the two outermost lines of each bar are printed by one same line head (22K1) of the plural line heads when the barcode is printed. The inner lines between the outermost two lines of each bar are printed by any line heads.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- B41J Class
- 54.09 % this patent is cited more than
- 16 Age
