Platform Scale
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 9, 2009
app pub date -
Jan 9, 2008
filing date -
Jan 9, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

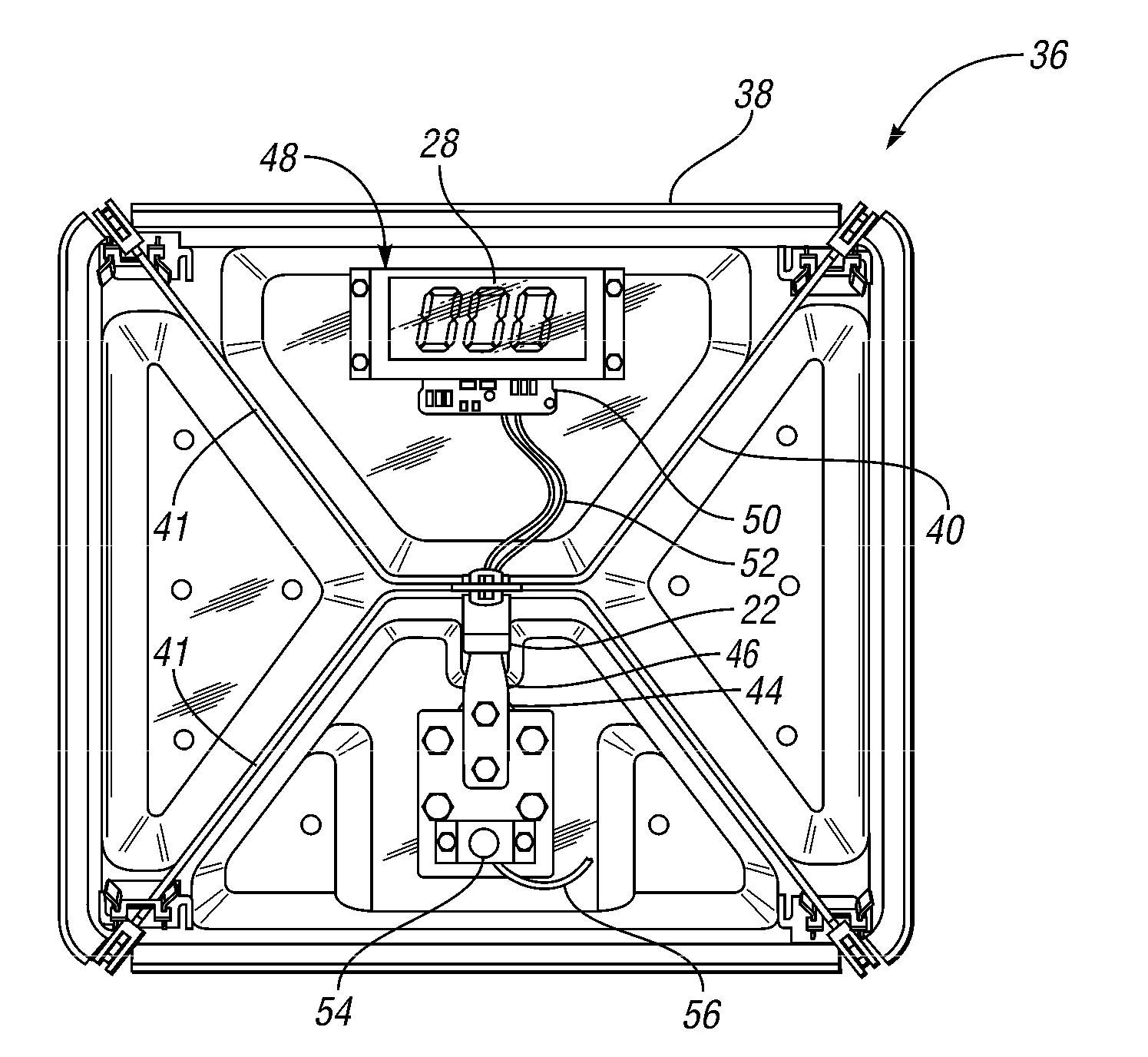

A scale for measuring weight has a weight measurement device to be supported by an underlying surface. A generally planar platform cooperates with the weight measurement device so a load on the platform is measured by the weight measurement device. The scale has a display for displaying a measured weight. The scale may have a battery powering the display and a removable battery powering an ancillary feature. The scale display may have three columns so a measured weight appears to scroll. The scale may have a processor outputting an audio signal when the measured weight is displayed and a speaker conveying a sound effect. The scale display may be on a majority of the surface indicating the measured weight for a time after load removal. The scale display may display a temperature when not displaying the measured weight and the scale may have an external temperature sensor and a receiver.
First Claim
Other Claims data not available
