WIPER BLADE ASSEMBLY HAVING MULTI-BEAM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 25, 2009
app pub date -
Feb 11, 2008
filing date -
Dec 20, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

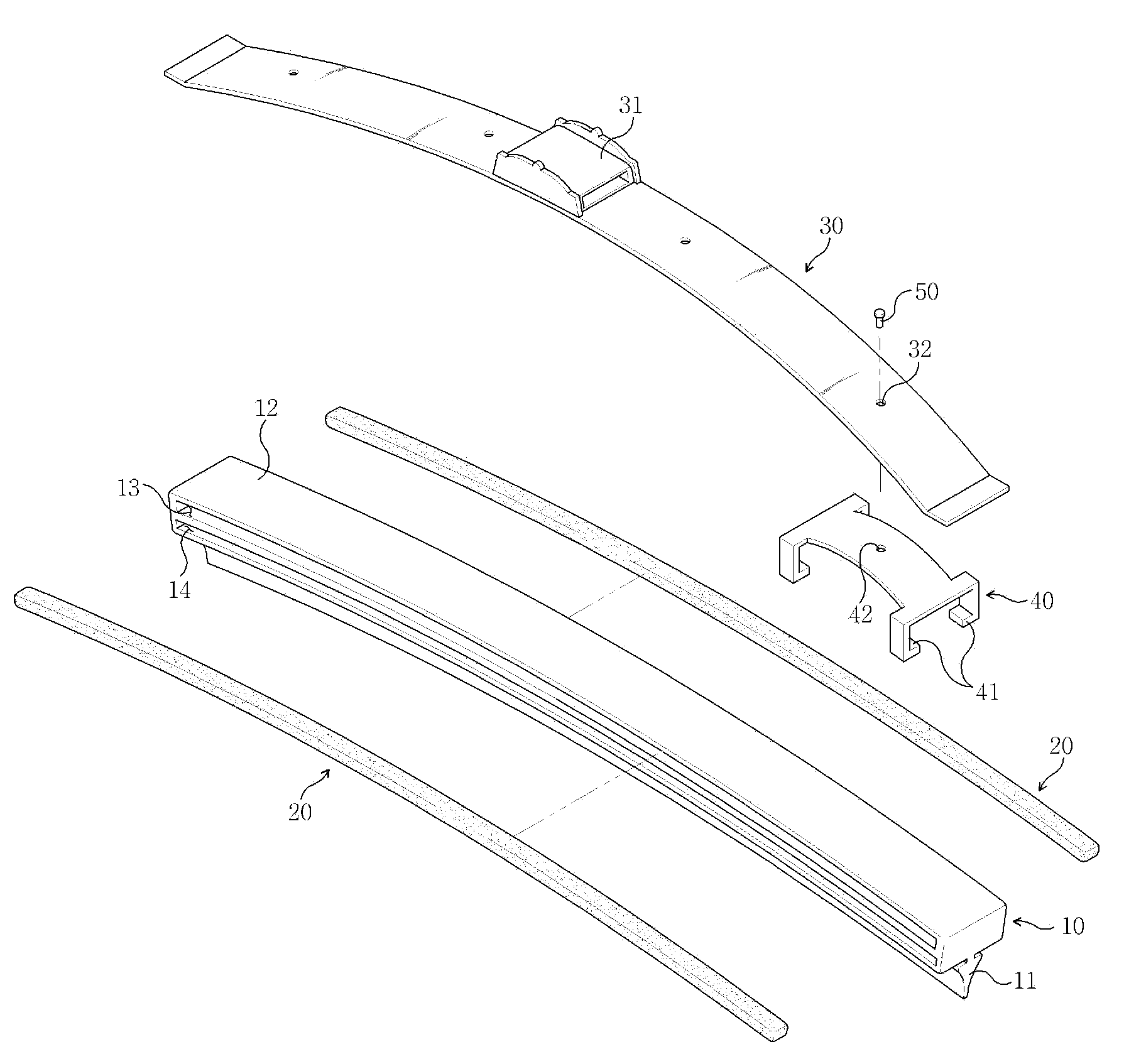

The present invention relates to a wiper blade assembly for wiping a windshield of a vehicle by the activation of a wiper arm, and the wiper blade assembly includes: a flexible elongated wiper blade having a given elastic force and adapted to come into direct contact with the windshield of the vehicle; a pair of rail springs coupled along the sides of the wiper blade so as to maintain the wiper blade in a predetermined shape; a guide beam coupled to the wiper blade and the rail springs to transfer the load and motion applied from the wiper arm to the wiper blade; and at least one or more auxiliary beams coupled to the guide beam and located in a longitudinal direction of the guide beam between the guide beam and the rail springs.
