Scanning system for a probe storage device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 7, 2010
Issued Date -
N/A
app pub date -
Dec 13, 2007
filing date -
Dec 13, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

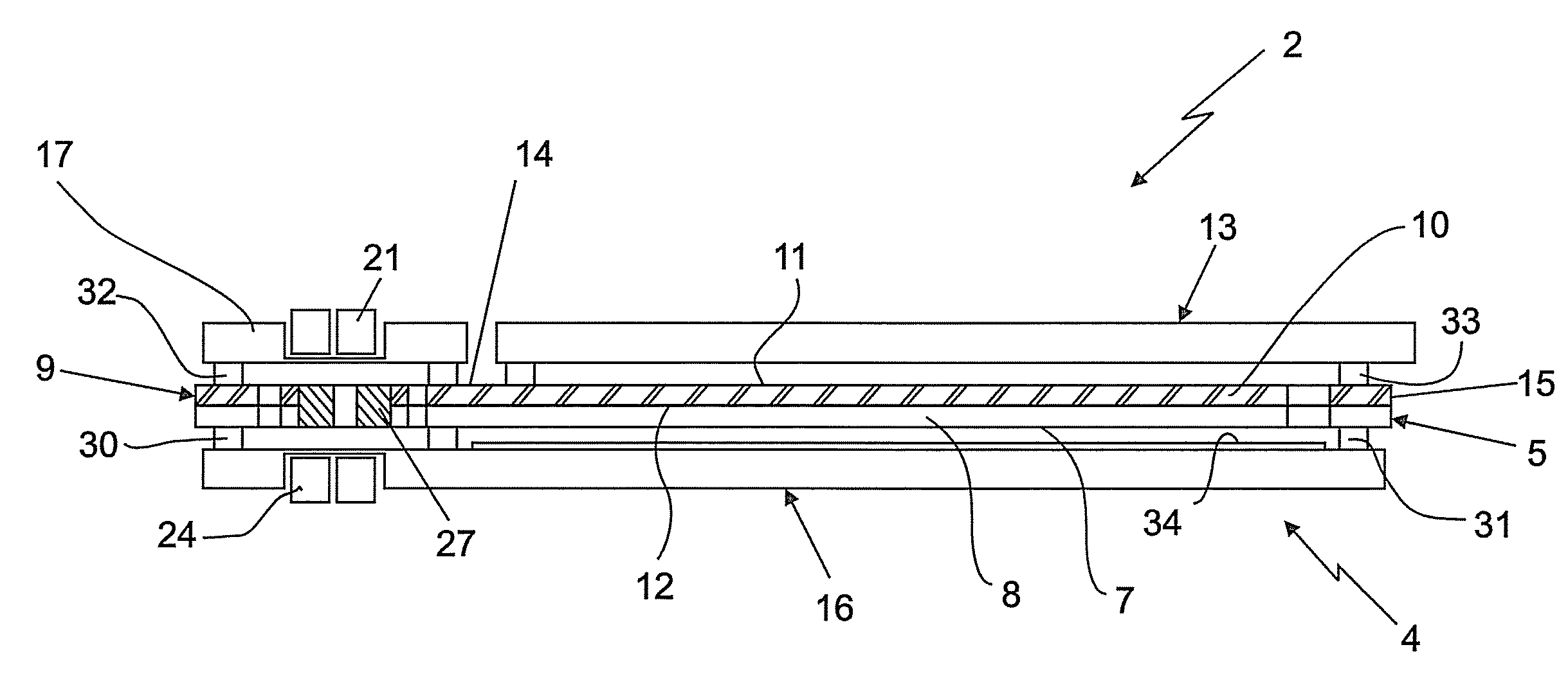

A probe storage device includes a scanner chip body having at least a mechanical ground portion provided with first and second opposing surfaces and a scan table suspension portion. A scan table including a top surface and a back surface is moveably mounted to the scan table suspension portion. A probe array chip is fixedly mounted to the first surface of the mechanical ground portion. A first plate is also fixedly mounted to the first surface of the mechanical ground portion. A second plate, having a main body portion including first and second opposing surfaces, is fixedly mounted to the second surface of the mechanical ground portion. A desiccant layer is positioned upon one of the first surface of the second plate, the back surface of the scan table and one of the first and second surfaces of the mechanical ground portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G11B Class
- 0 % this patent is cited more than
- 15 Age
