CARRYING CASE WITH BACKBONE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 4, 2009
app pub date -
Mar 6, 2008
filing date -
Dec 3, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

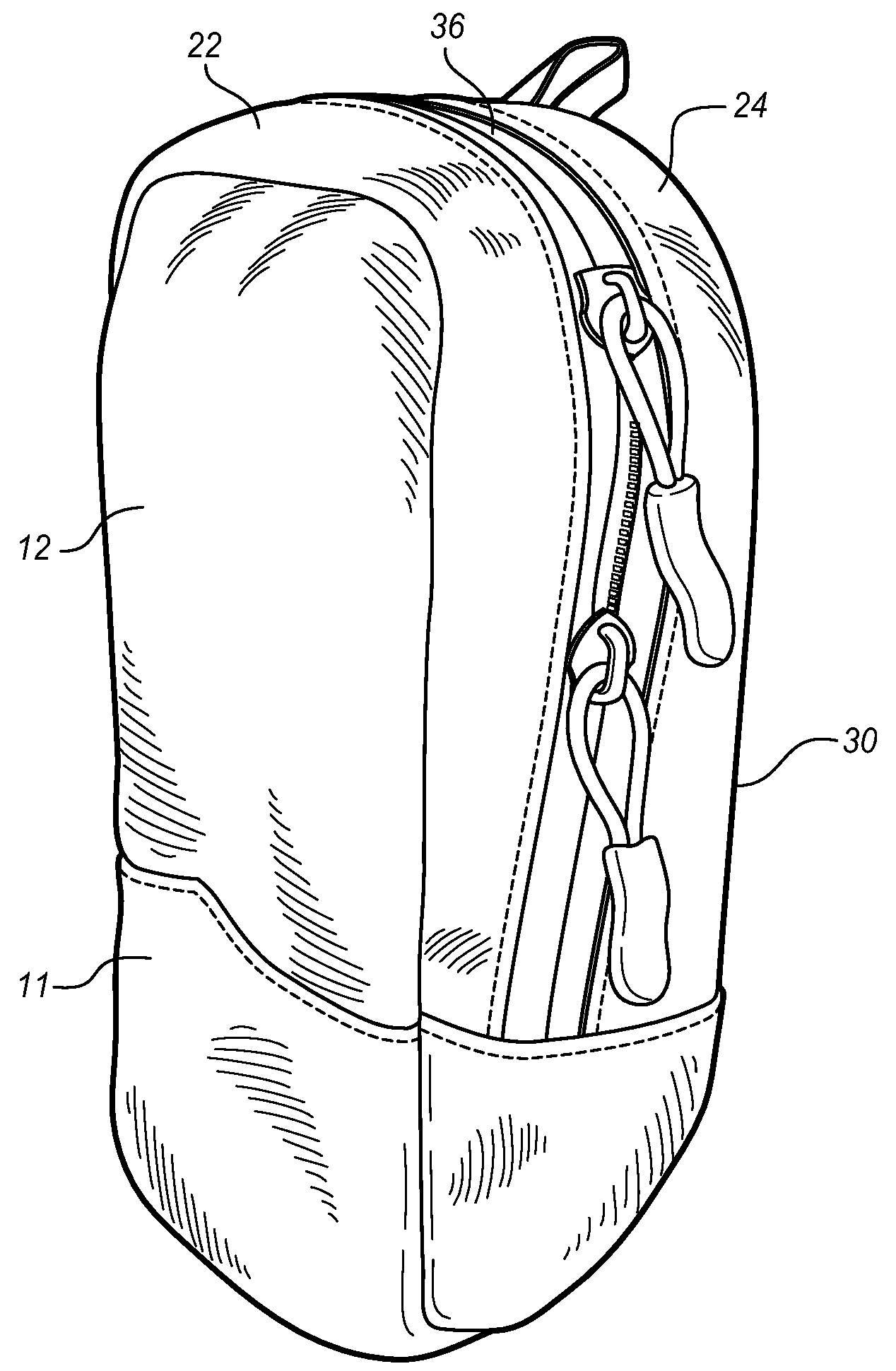

A carrying case includes a backbone panel forming a back and base for the carrying case. A rear-top panel is connected to the backbone panel forming at least a portion of the sides and top of the carrying case. A left side and a right side panel are connected to the backbone panel forming a portion of the left side and right side of the carrying case, respectively. A mid-top panel is connected to the left side and right side panels, forming a portion of the sides and top of the carrying case. A mid-front panel is connected to the mid-top panel, the left side and right side panels, and the backbone panel, the mid-front panel forming the front of the carrying case. A first zipper is connected to the rear-top panel and the mid-top panel. The backbone panel, rear-top panel, left side and right side panels, mid-top panel, mid-front panel, and zipper form a first pocket in the carrying case.
First Claim
Other Claims data not available
