PROTECTANT APPLICATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 18, 2008
filing date -
Jan 17, 2001
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

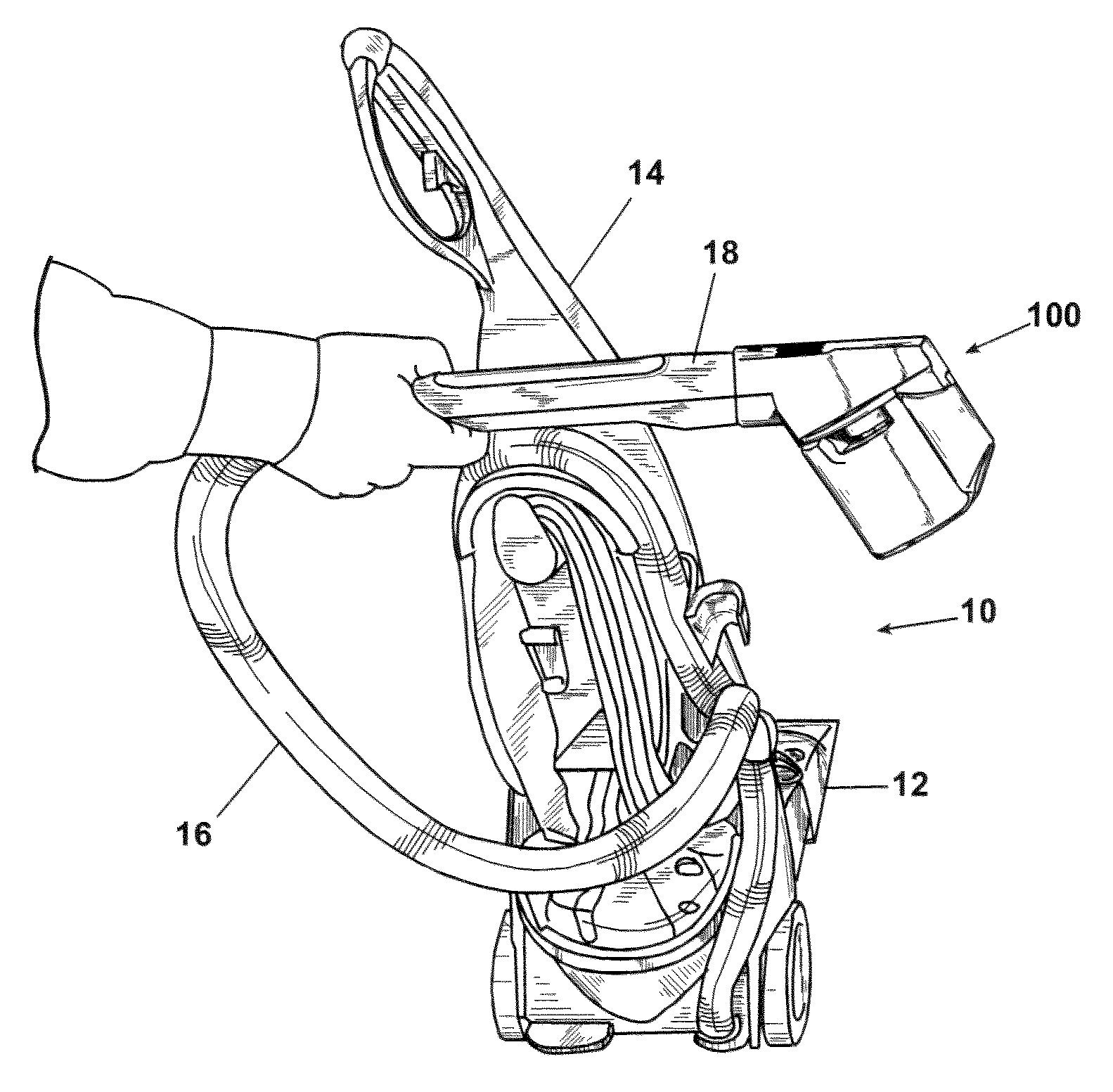

A hand-held nozzle is attached to the end of a vacuum and fluid delivery hose of an upright deep cleaner. The nozzle includes a reservoir to contain a solution to be applied to a surface. When a solution delivery system of the deep cleaner is pressurized, water from the upright cleaner clean water tank is routed through the hose to the hand-held nozzle. The water is routed through a venturi valve connected to the reservoir, which draws the solution to the valve to mix with the water stream. The resultant mixture flows from the hand-held nozzle for application to a surface being treated. One embodiment of the solution reservoir includes a retainer cap bonded to the reservoir and utilizing a bayonet-type mounting arrangement for mounting the reservoir to a nozzle assembly.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B08B Class
- 3.59 % this patent is cited more than
- 16 Age
