LAWN AND GARDEN EQUIPMENT LIFT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 14, 2009
app pub date -
Nov 7, 2008
filing date -
Nov 9, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

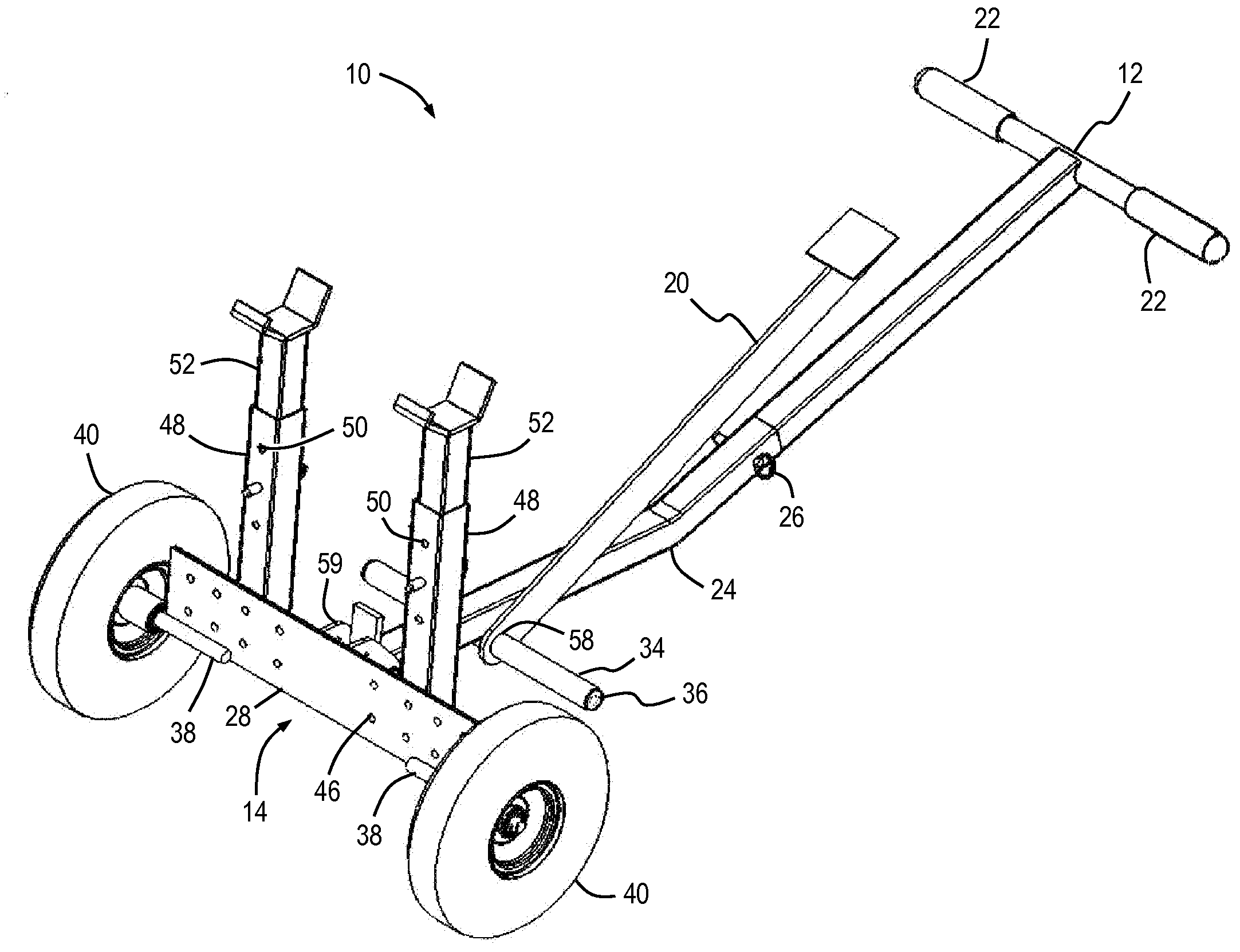

A lifting device for a lawn tractor. An angle member has first and second generally planar portions, the second planar portion being oriented generally perpendicularly and joined to the first planar portion. A pair of wheels are rotatably attached to opposing ends of the angle member. A handle extends from the first planar portion of the angle member. A foot brace is attached to the handle and is oriented generally perpendicularly thereto; A pair of spaced-apart lift members extend from the second planar portion of the angle member. An elongated safety brace is configured to detachably couple to the foot brace. The safety brace is positionable to extend beneath the angle member while coupled to the foot brace and while the lifting device is in a service position, thereby resisting movement of the lift from the service position.
First Claim
Other Claims data not available
