Belt for a corrugator machine having a friction coefficient reduced driven side
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 20, 2011
Grant Date -
Apr 30, 2009
app pub date -
Oct 29, 2008
filing date -
Oct 30, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

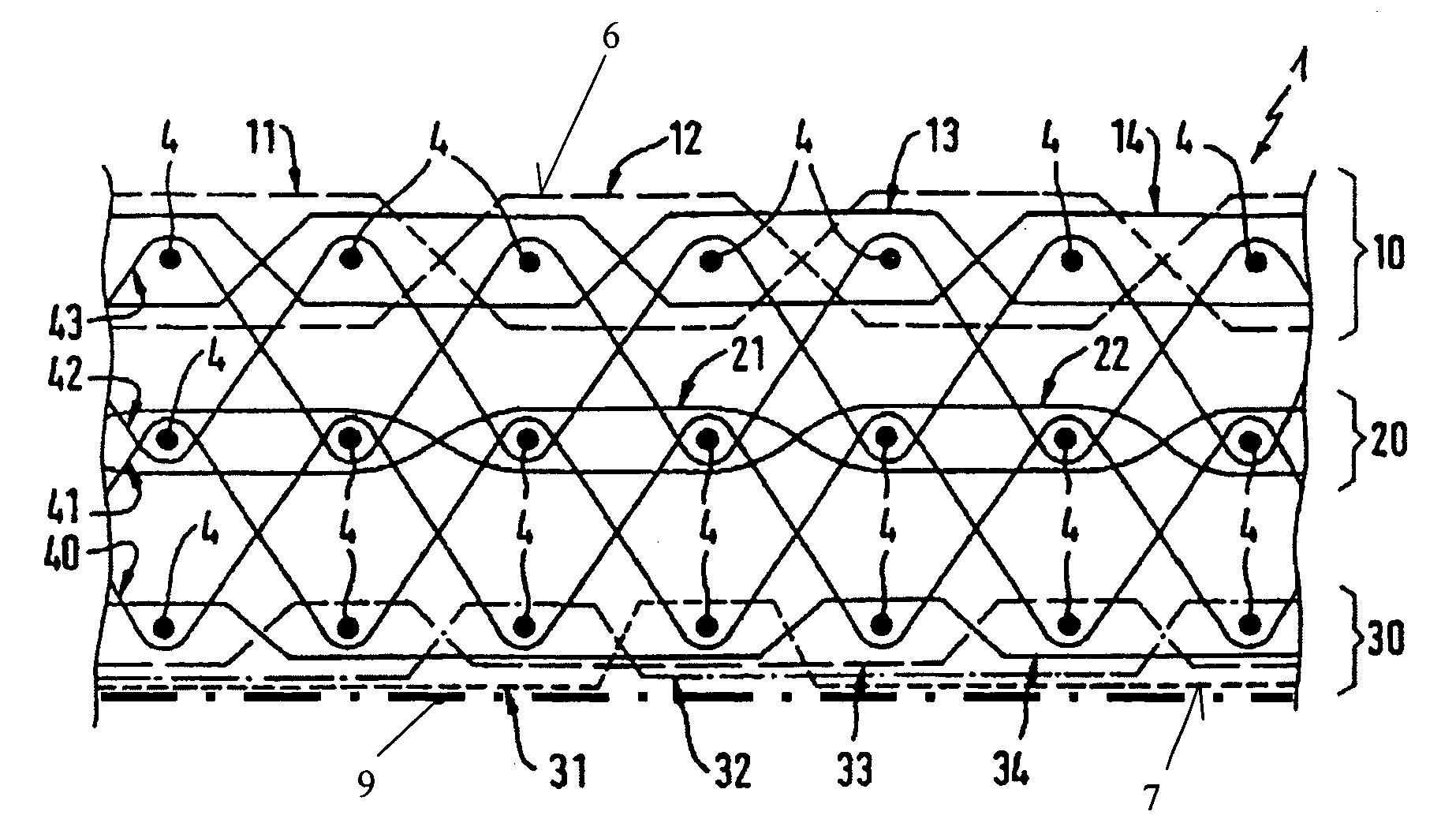

The invention relates to a belt for a corrugator machine for making corrugated board (50) wherein at least a middle layer (52) of corrugated material is joined under pressure to cover layers (51, 53) of smooth material to form the corrugated board (50). The belt (1) is made of a fabric of warp fibers and weft fibers (4) and has a paper side facing toward the corrugated board (50) to be manufactured. The paper side (6) lies against the corrugated board (50). A driven side (7) lies facing away from the corrugated board (50). The corrugator machine has a pressure zone (70) which includes a pressure element (71) and a countersupport (73). The corrugated board (50) together with the contact engaging fabric belt (1) passes between the pressure element (71) and the countersupport (73). A drive (61) is provided on the driven side (7) of the belt to generate the tension forces acting in the longitudinal direction of the belt. To reduce the friction loss in the pressure zone, a material is provided on the driven side (7) of the fabric belt (1) for reducing the coefficient of friction of the belt side defining the driven side (7).
