INFORMATION RECORDING MEDIUM HAVING SUBSTRATE WITH MICROSCOPIC PATTERN AND REPRODUCING APPARATUS THEREFOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 16, 2008
filing date -
May 2, 2001
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

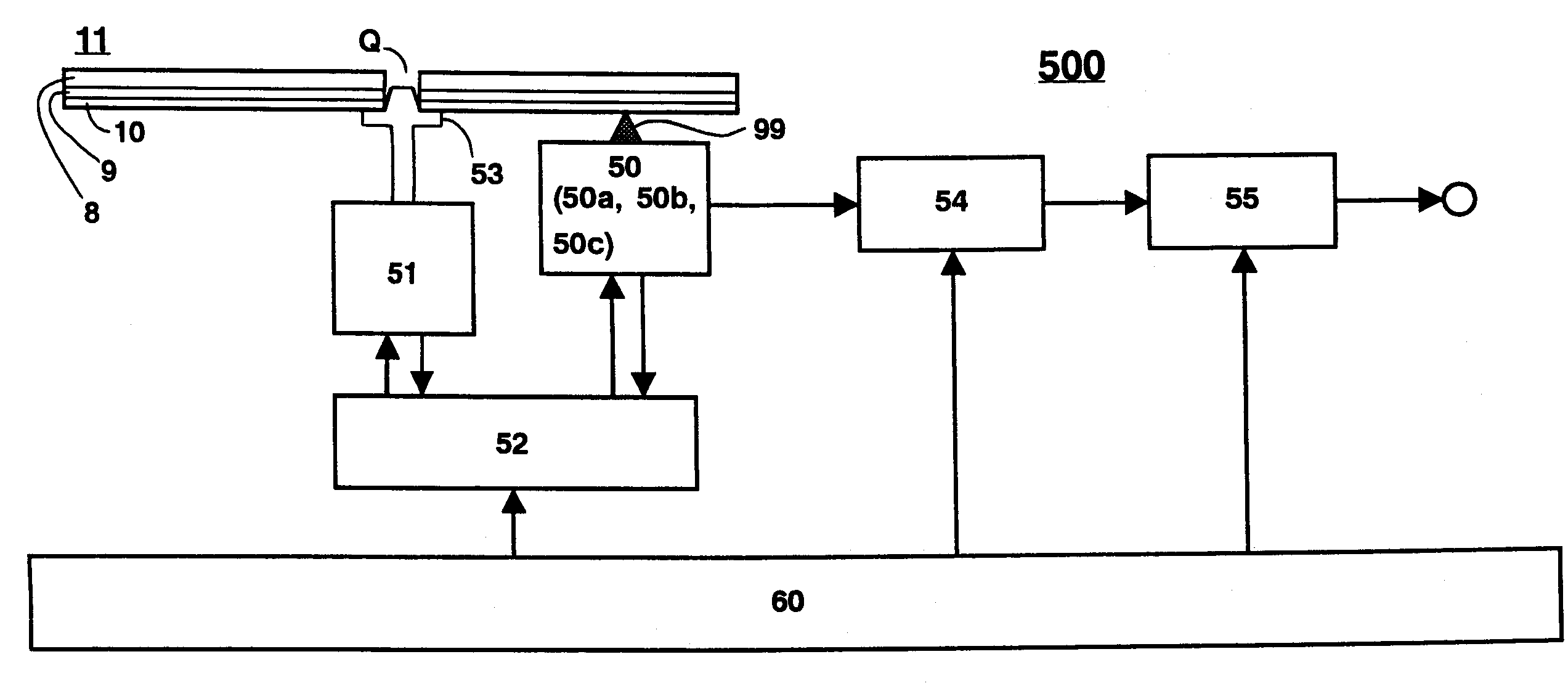

A recording medium includes a substrate having a microscopic pattern, which includes a shape of continuous substance of approximately parallel grooves formed with a convex shaped section and a concave shaped section alternating on a surface of the substrate. A recording layer is formed on the microscopic pattern and a light transmitting layer has a thickness of 0.05 mm to 0.12 mm formed on the recording layer. The microscopic pattern satisfies a relation of P≦λ/NA, wherein P is a pitch of the convex shaped section, λ is a wavelength of a reproducing light beam and NA is a numerical aperture of an objective lens. The microscopic pattern also includes modulated address information formed on both side walls of the convex shaped section viewed from the light transmitting layer as a wobble, both the side walls being parallel to each other, and furthermore wherein the address information is modulated by the phase-shift keying modulation system. A reproducing apparatus is particularly suited for the recording medium.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G11B Class
- 4.92 % this patent is cited more than
- 16 Age
