Detection Apparatus and Methods

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20090098655A1
SERIAL NO

12225481

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

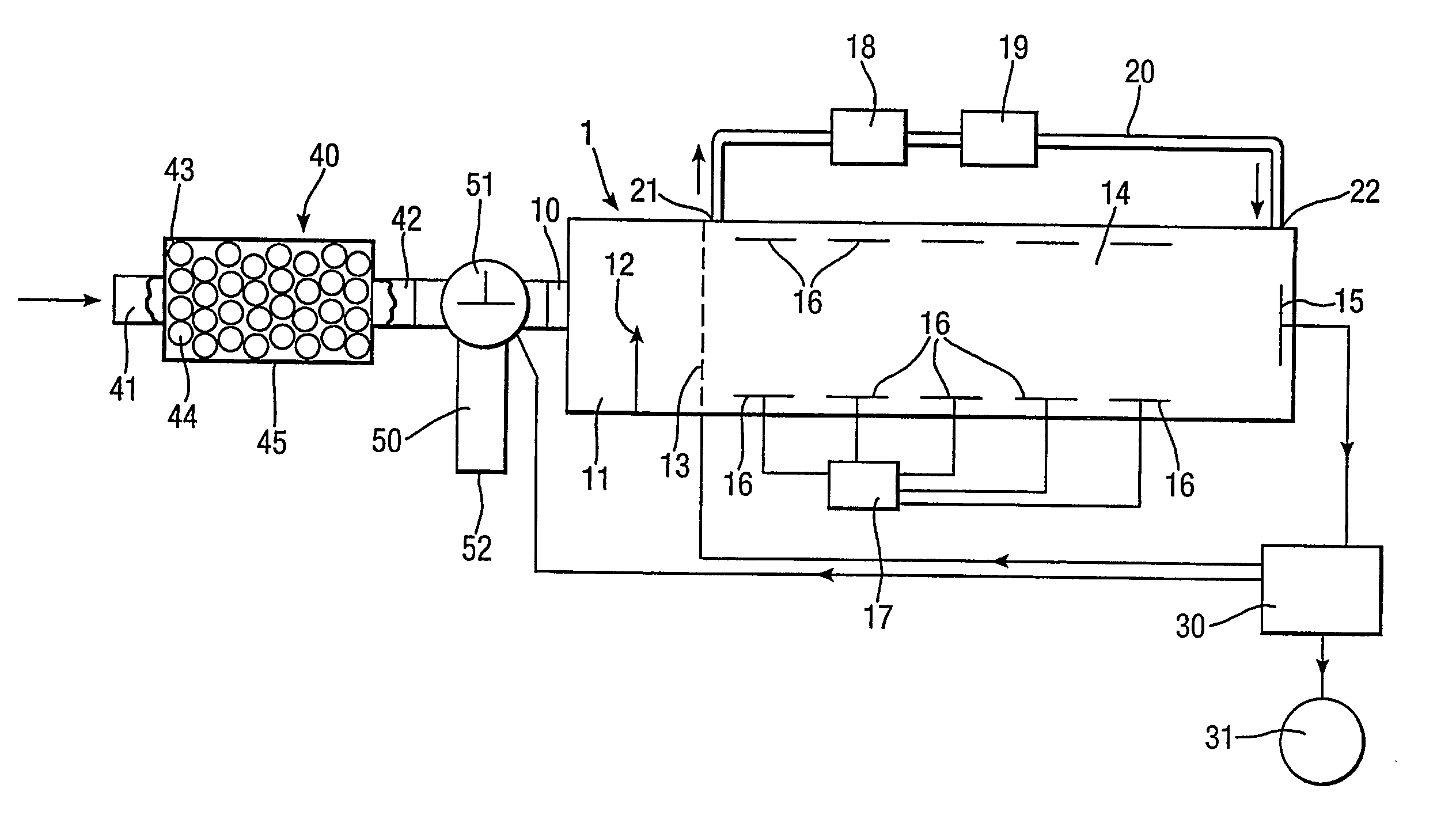

A chemical cell (40) containing silver nitrate is connected at the inlet (10) of an ion mobility spectrometer (1) so that sample gas for detection flows to the IMS via the chemical cell. When the sample gas contains arsine or phosphine, to which the IMS is not normally sensitive, this is converted by the silver nitrate in the cell (40) to nitric acid, to which the IMS is sensitive. In order to distinguish between nitric acid produced in response to arsine or phosphine and nitric acid present in the sample gas before supply to the cell (40), the inlet (10) is switched to receive sample gas directly.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SMITHS DETECTION-WATFORD LIMITEDHEMEL HEMPSTEAD HERTFORDSHIRE HP2 7DE

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Brokenshire, John Leslie Torrington , GB 1 0
Polychronopulos, Basil Luton , GB 2 3

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • G01N Class
  • 0 % this patent is cited more than
  • 16 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges123125845519376554022221385901 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +010020030040050060070080090010001100120013001400
