Coupling construction for a pipe
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 9, 2009
app pub date -
Oct 2, 2008
filing date -
Oct 2, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

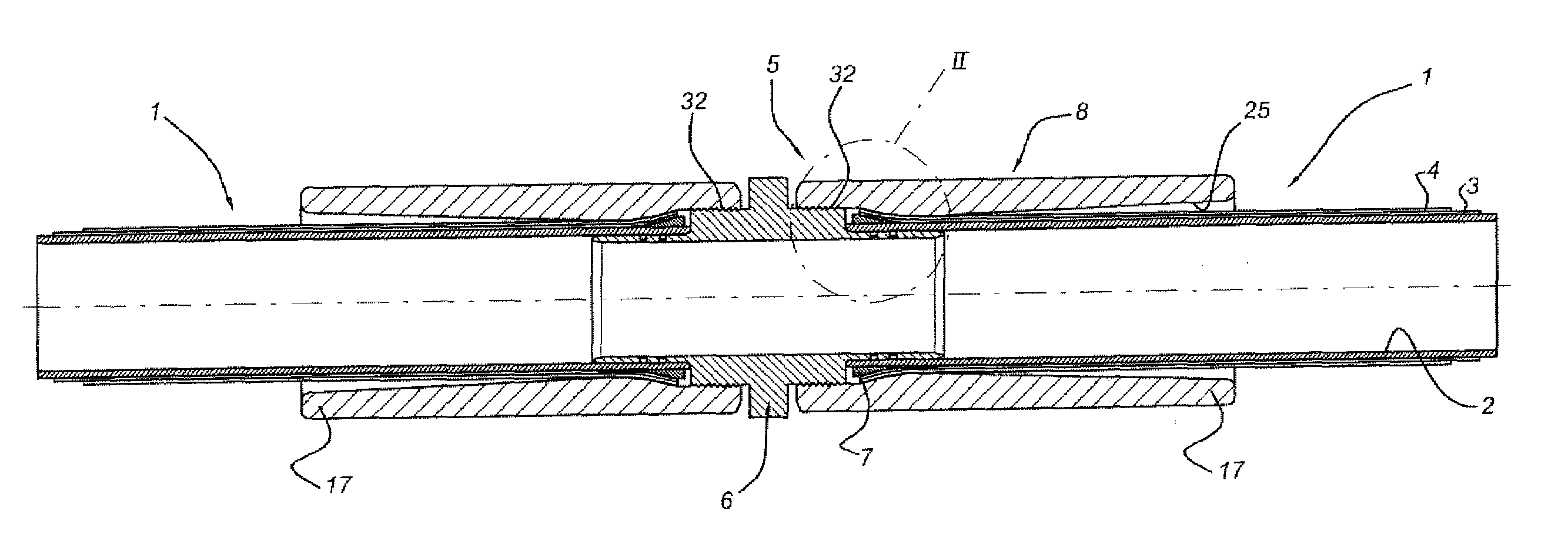

The present invention relates to a connecting construction between a pipe and a coupling, which pipe comprises an internal lining and a fibre reinforcement layer surrounding the lining. The coupling has a coupling piece having an external clamping surface, a sleeve which surrounds the coupling piece and has an internal clamping surface which is shaped in accordance with the external clamping surface of the coupling piece, and also a coupling end interacting with the coupling piece. The fibre reinforcement layer is secured between the coupling piece and the sleeve. The sleeve has a mount which is remote from the coupling end and the internal support surface of which extends so as to widen in the direction away from the coupling end.
First Claim
Other Claims data not available
