DISPLAY FOR SHEET GOODS AND METHOD OF ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 20, 2008
filing date -
Aug 31, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

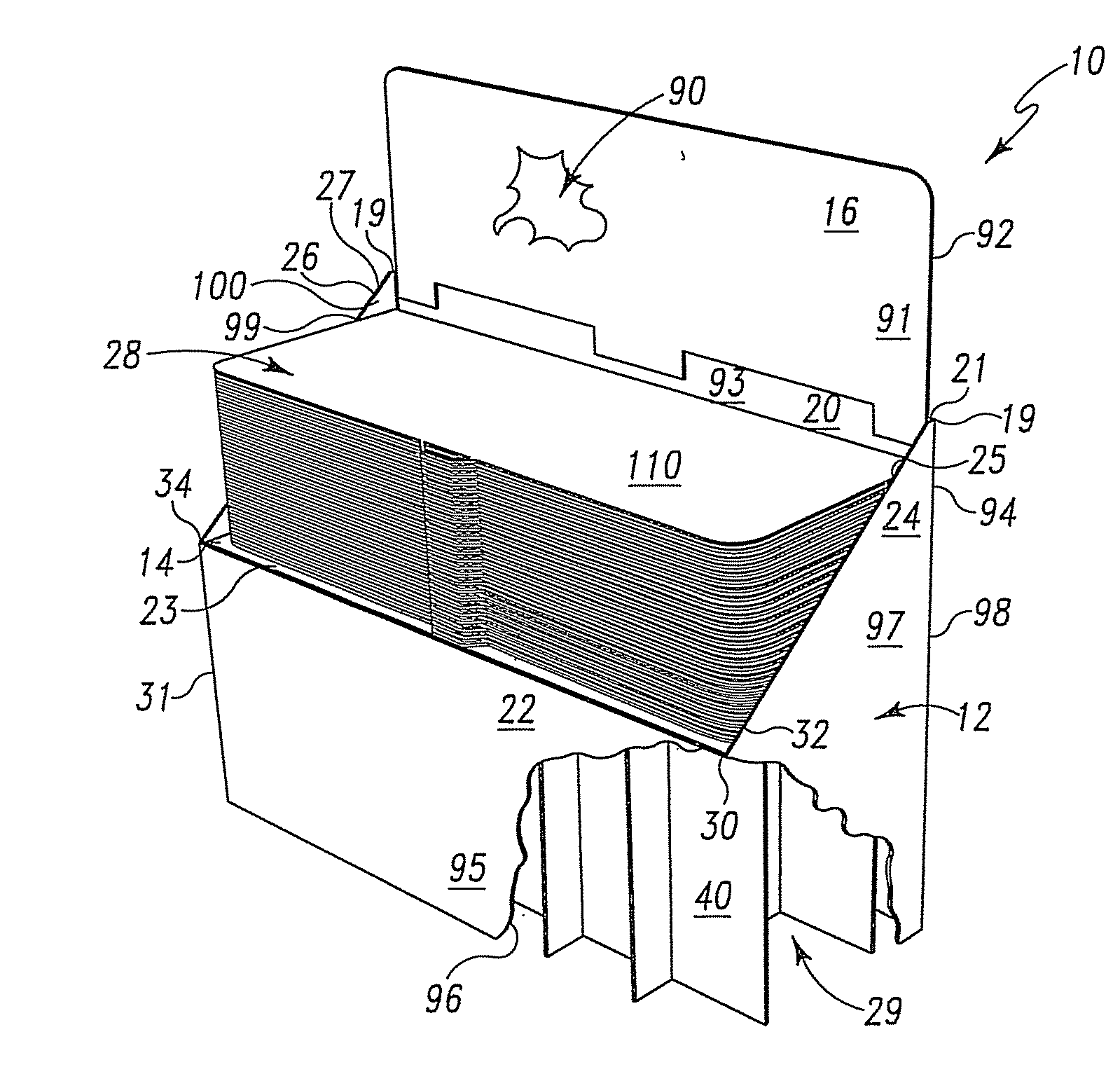

A display having two upstanding side panels hinged to opposite vertical edges of an upstanding front panel, the side panels having inwardly folded rear edges. A foot member coupled to lower corners of the junctions of the front panel with the side panels fix the position of the side panels relative to the front panel. Tabs located along the edges of a shelf are inserted into slots located in the front panel and the side panels to fix the position of the shelf. The slots are defined by a pair of horizontal slits cut in the upstanding panels to define a band of material between the pair of slits, the band of material being displaced inwardly to form a slot for receiving a corresponding tab. A foot member can be coupled to each of the lower corners defined by the junctions of a back panel with the side panels to fix the position of the back panel relative to the side panels. Caster assemblies on downward facing surfaces of the foot members facilitate movement of the display. Graphics panels can be secured to an outside surface of any or the upstanding panels with suitable indicia related to the product to be displayed.
First Claim
Other Claims data not available
