EMBROIDERY FRAME SUPPORT DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 19, 2009
app pub date -
May 19, 2006
filing date -
May 19, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

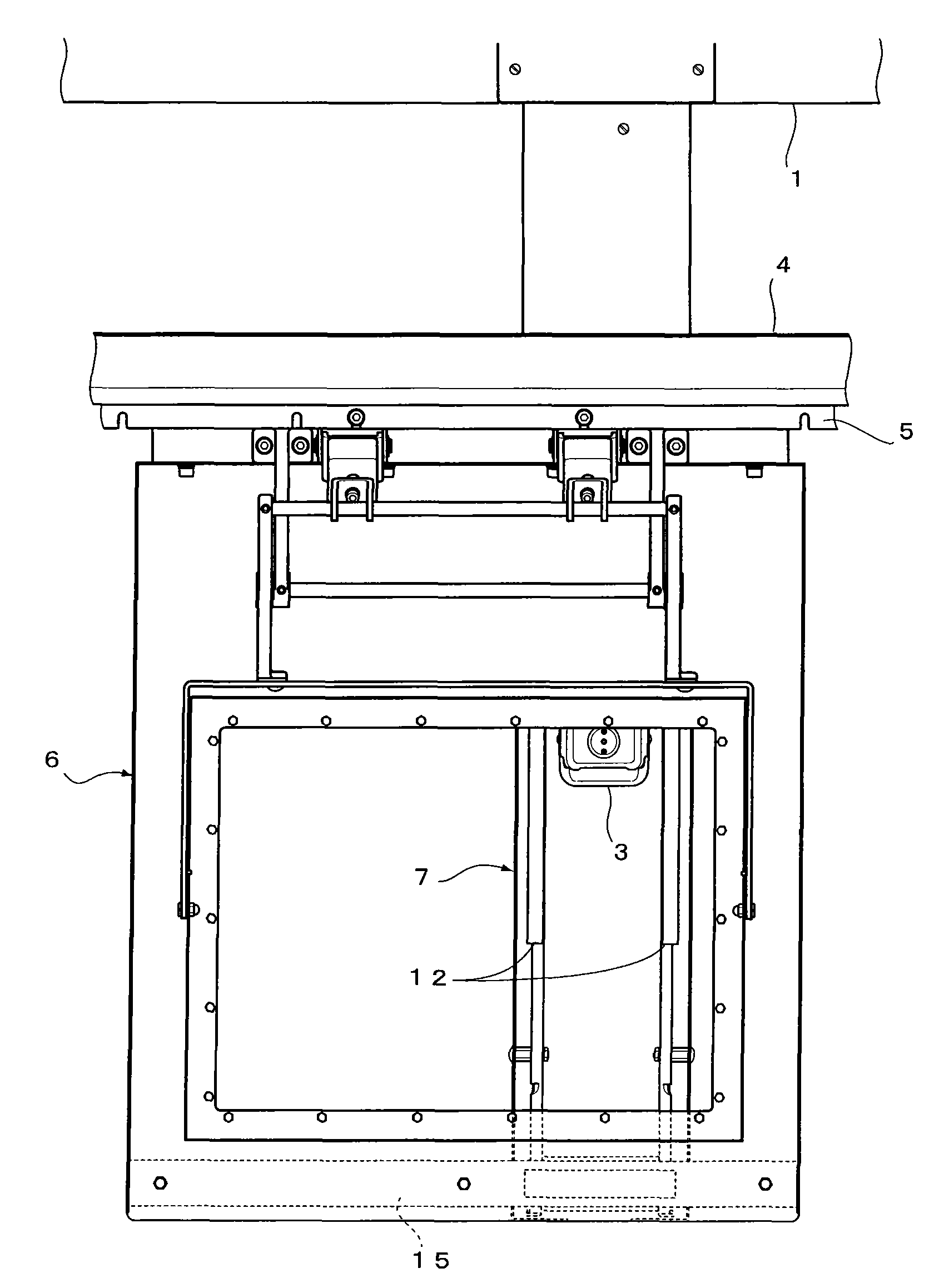

In an embroidery sewing machine, an embroidery frame support device for supporting a front end portion of an embroidery frame installed in a cantilevered manner includes: a base member that is a base for attaching the embroidery frame support device to the embroidery sewing machine, and a Y slide rail (support member) having a movable end that can move relatively with the base member. The embroidery frame support device supports a front end portion of the embroidery frame from a lower surface thereof through an X slide rail attached to a tip portion of the Y slide rail. The embroidery frame support device can be attached to the embroidery sewing machine by screwing a base member to a cylinder bed. The screwing of the base member to the cylinder bed can be carried out from the upper side of a sewing machine table.
First Claim
Other Claims data not available
