PEDICLE SCREW
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 5, 2009
app pub date -
Apr 4, 2006
filing date -
Apr 4, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

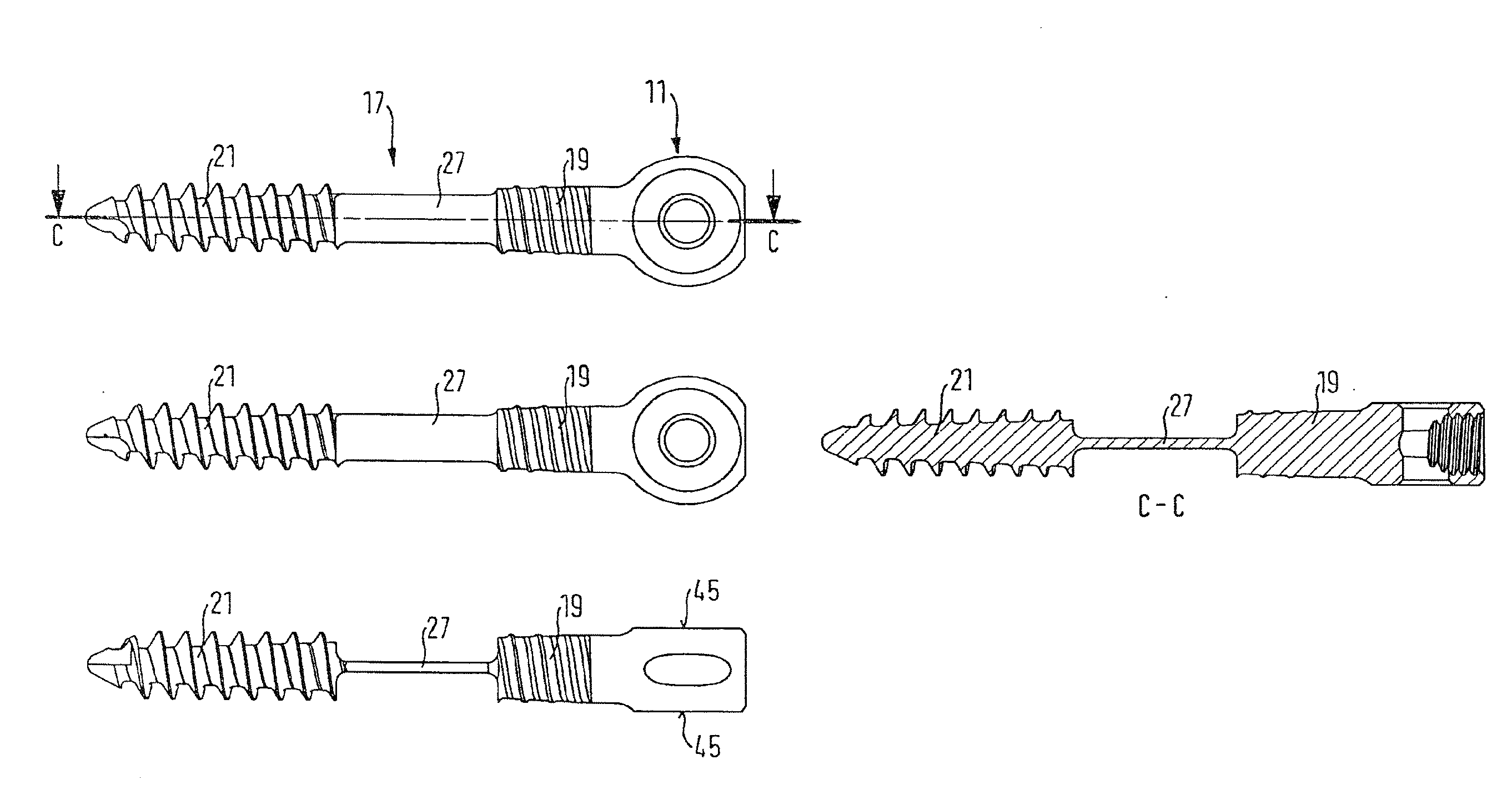

The invention relates to a pedicle screw comprising a head (11) for coupling to an elastic intervertebral stabilizing or supporting system and comprising a shank, which is to be anchored inside a vertebra and which, when implanted, extends through the pedicle and into the vertebral body. The shank comprises, in its longitudinal extension measured from the head: an upper shank area (19) adjacent to the head and a stress-relief area (17), which is joined to the upper shank area, the stress-relive area having a flexural strength less than that of the upper shank area, and the stress-relief area is placed in the area of the shank provided for being placed inside the bone.
First Claim
Other Claims data not available
Family
