METHOD AND APPARATUS FOR OBTAINING HOLOGRAMS AND/OR OPTICAL EFECTS ON LAMINAR MATERIAL

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20090056858A1
SERIAL NO

11659140

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

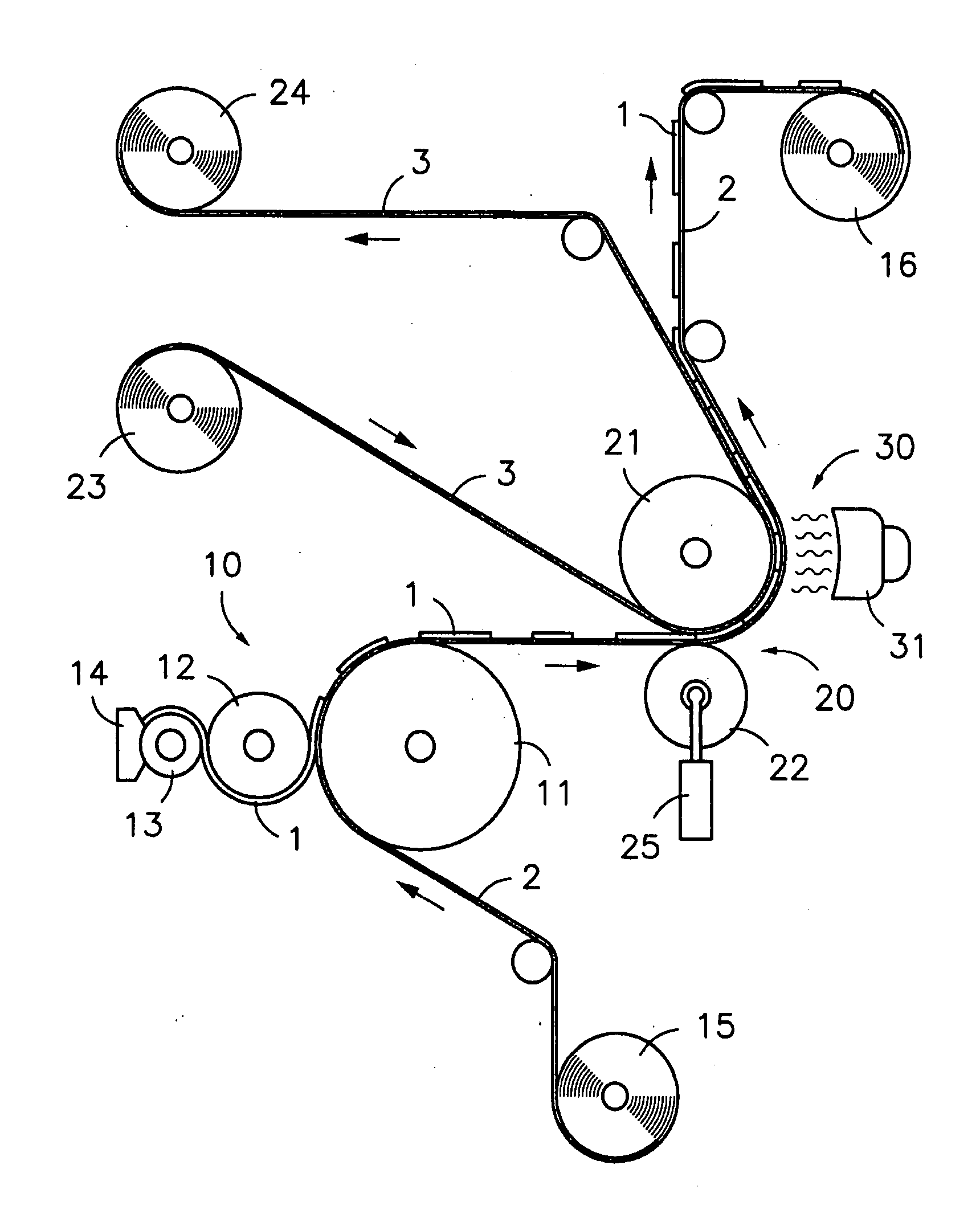

A method and apparatus for obtaining holograms and/or optical effects on a laminar material is provided. A die provided with an original pattern of a hologram or corresponding to a configuration that can provide an optical effect, is used by a superimposing and pressing on a lacquer layer applied on a laminar substrate, and the lacquer layer on said laminar substrate is cured. The method comprises providing the die as a continuous band on which the mentioned pattern is configured; dynamically superimposing said lacquer layer applied to the laminar substrate to said die on a support roller, and dynamically pressing the lacquer layer applied to the laminar substrate against the die on said support roller by means of a pressure roller.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
NEOPACK S L17457 RIUDELLOTS DE LA SELVA (GIRONA)

International Classification(s)

loading....
  • 2005 Application Filing Year
  • B32B Class
  • 3530 Applications Filed
  • 1682 Patents Issued To-Date
  • 47.65 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances200520062007200820092010201120122013201420152016201720182019202020210255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Casanovas, Juan Grifoll Porqueres, ES 1 19
Davila, Casitas Juan Porqueres, ES 1 19

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 19 Citation Count
  • B32B Class
  • 58.69 % this patent is cited more than
  • 16 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges9611374371961044832169671301 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +05010015020025030035040045050055060065070075080085090095010001050110011501200

Forward Cite Landscape

Load Citation
