Modular Bipolar Battery
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 26, 2009
app pub date -
Mar 29, 2006
filing date -
Mar 31, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

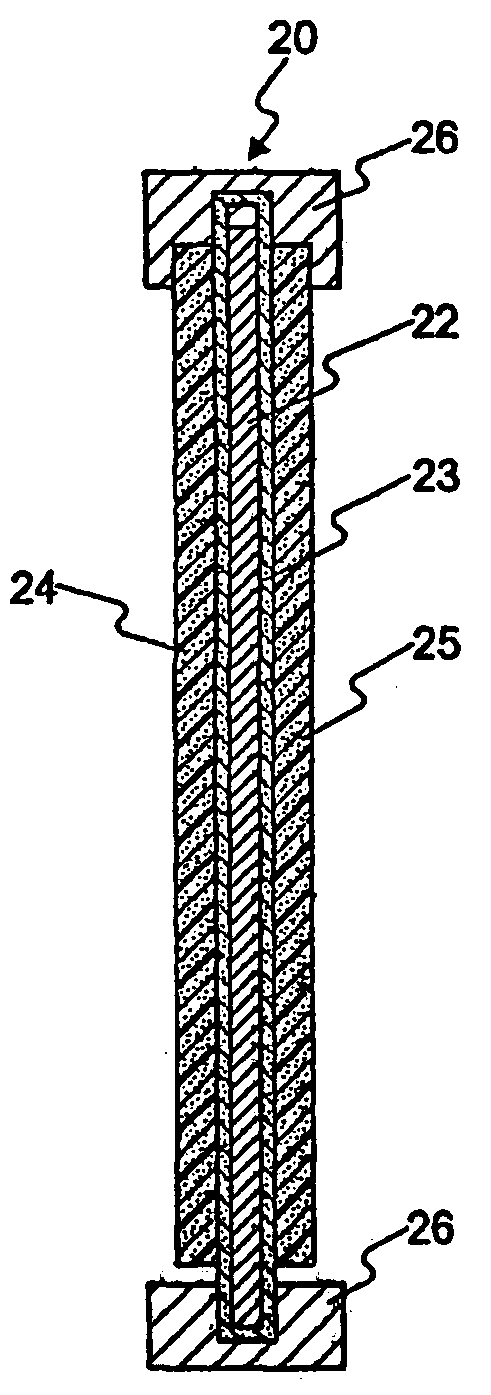

A bipolar electrode module for a modular bipolar battery includes an electrode substrate having a first face, a second face, and a perimeter. An electrical connection element is disposed on the electrode substrate such that the electrical connection element overlaps at least a portion of both the first face and the second face of the electrode substrate. A first carbon foam current collector is attached to the first face of the electrode substrate, and a second carbon foam current collector is attached to the second face of the electrode substrate. A frame is attached to the electrode substrate along at least a portion of the perimeter of the electrode substrate.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2006105188 | Mar 29, 2006 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- B29C Class
- 5.33 % this patent is cited more than
- 16 Age
