BELL-SHAPED ORNAMENTAL COVER OF A CEILING FAN
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 26, 2009
app pub date -
Aug 22, 2007
filing date -
Aug 22, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

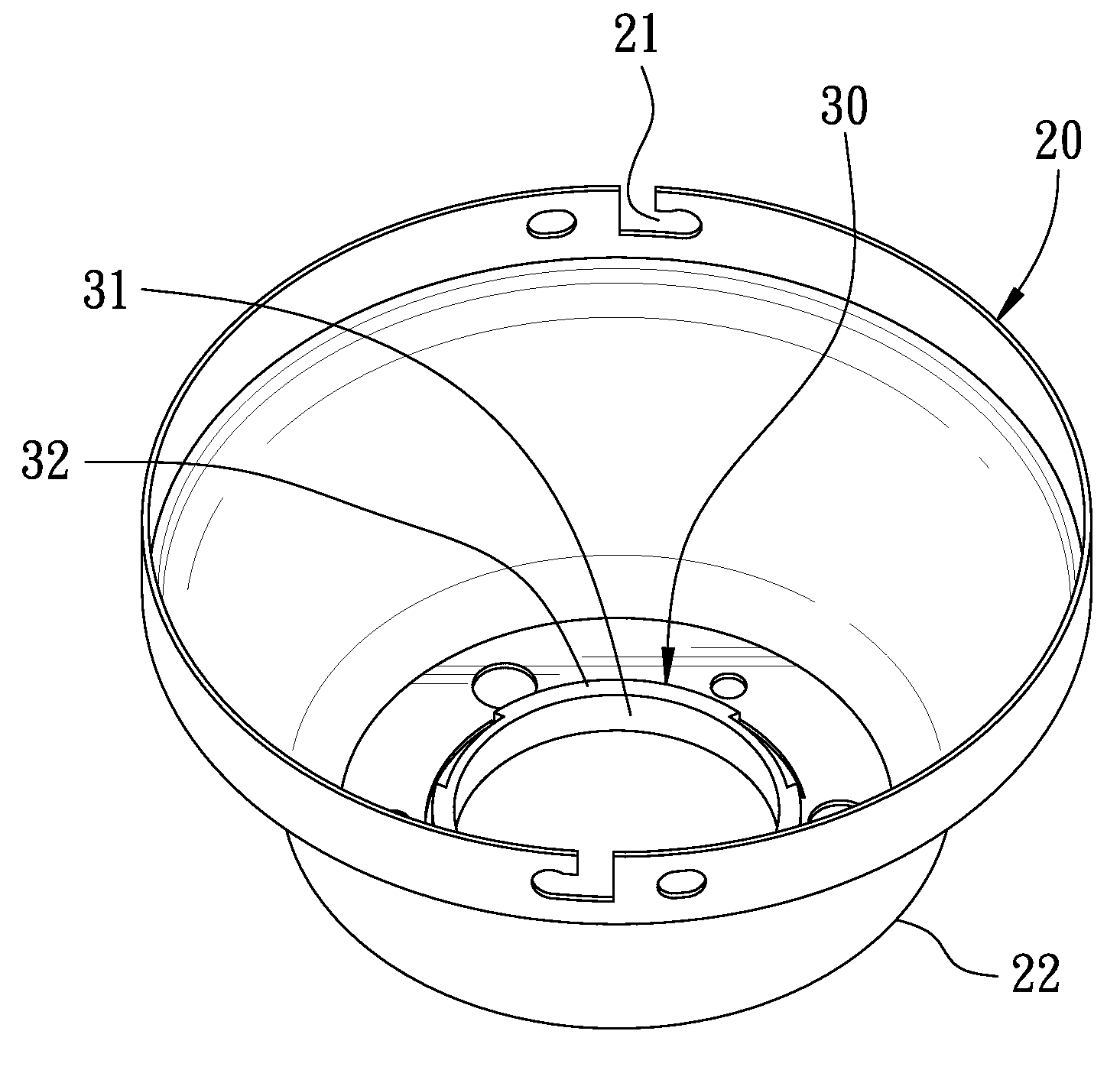

A bell-shaped ornamental cover of a ceiling fan mainly makes the bottom of a hanging bell covered by an ornamental cover to keep exposed screws hidden to beautify the ceiling fan. The hanging bell has its bottom shrunk as a neck opening with at least two engaging projections extended towards the center. The ornamental cover possesses a positioning ring extended upward around its inner circumference for being fixed in the neck opening. The positioning ring has its outer wall extended outward with plural locking portions for corresponding to the engaging projections that are respectively to be engaged with a locking groove formed inside the locking portions. In assembling, just aim the engaging projections at recesses formed between every two adjacent locking portions and then, turn around the ornamental cover.
First Claim
Other Claims data not available
