ESD PROTECTION CIRCUITS FOR MIXED-VOLTAGE BUFFERS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 12, 2009
app pub date -
Aug 10, 2007
filing date -
Aug 10, 2007
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

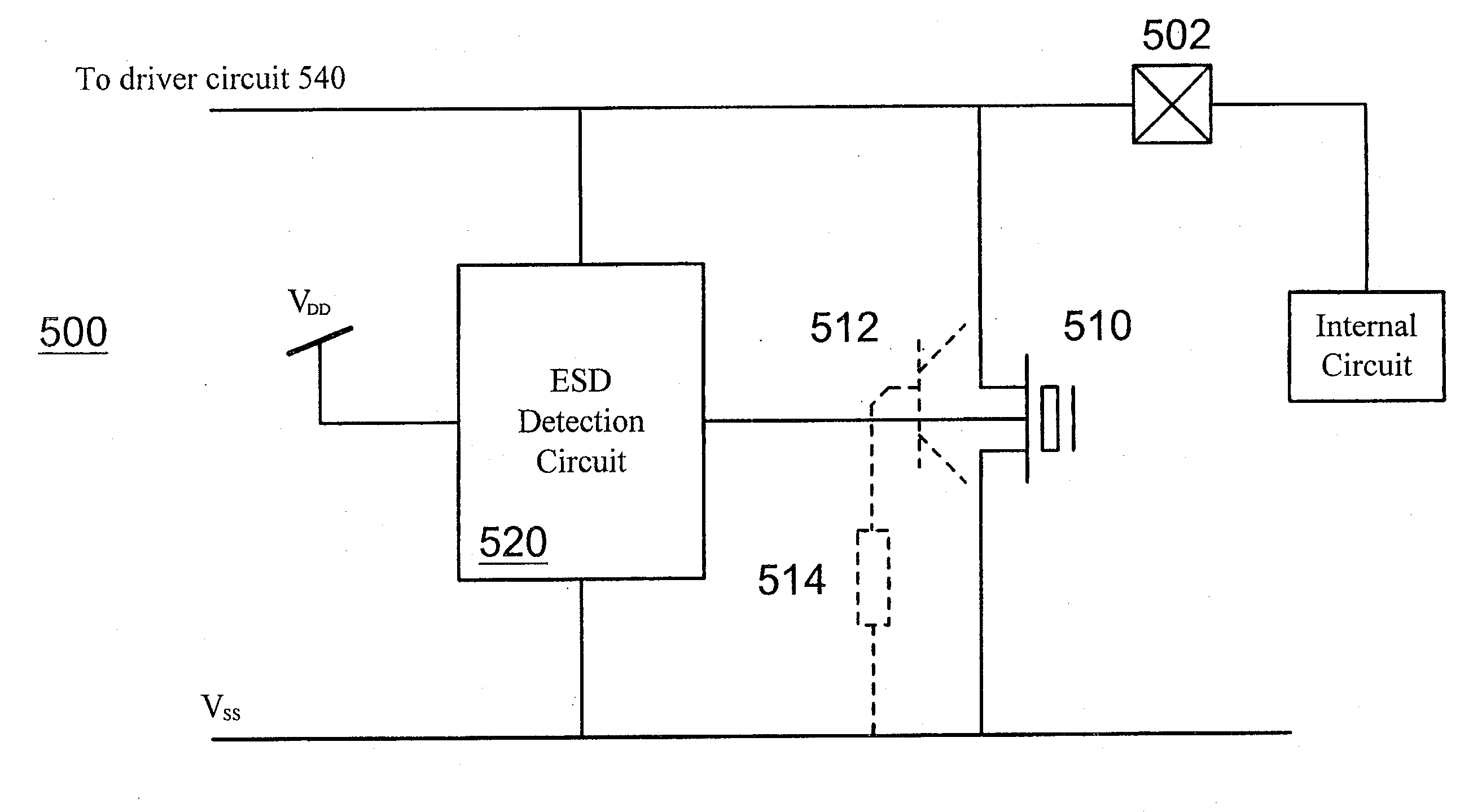

An ESD protection circuit that protects a mixed-voltage input/output (I/O) buffer circuit in an integrated circuit is provided. The ESD protection circuit includes an ESD discharging circuit coupled to the I/O pad and ESD detection circuit coupled to the discharging circuit providing a means for detecting an ESD and triggering the discharging circuit to conduct the ESD to ground. The ESD discharging circuit comprises stacked NMOS transistors or a field oxide device (FOD). The protection circuit can also be used in an ESD protection circuit for a high-voltage-tolerant input pad or to protect multiple input pads and/or multiple I/O pads in an integrated circuit.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
