TUBE MADE OF FLEXIBLE MATERIAL, WITH PRE-INJECTED SKIRT AND SEMIHEAD, INCLUDING IN-MOULD LABELLING, AND ITS MANUFACTURING PROCEDURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 29, 2009
app pub date -
Feb 1, 2005
filing date -
Feb 1, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

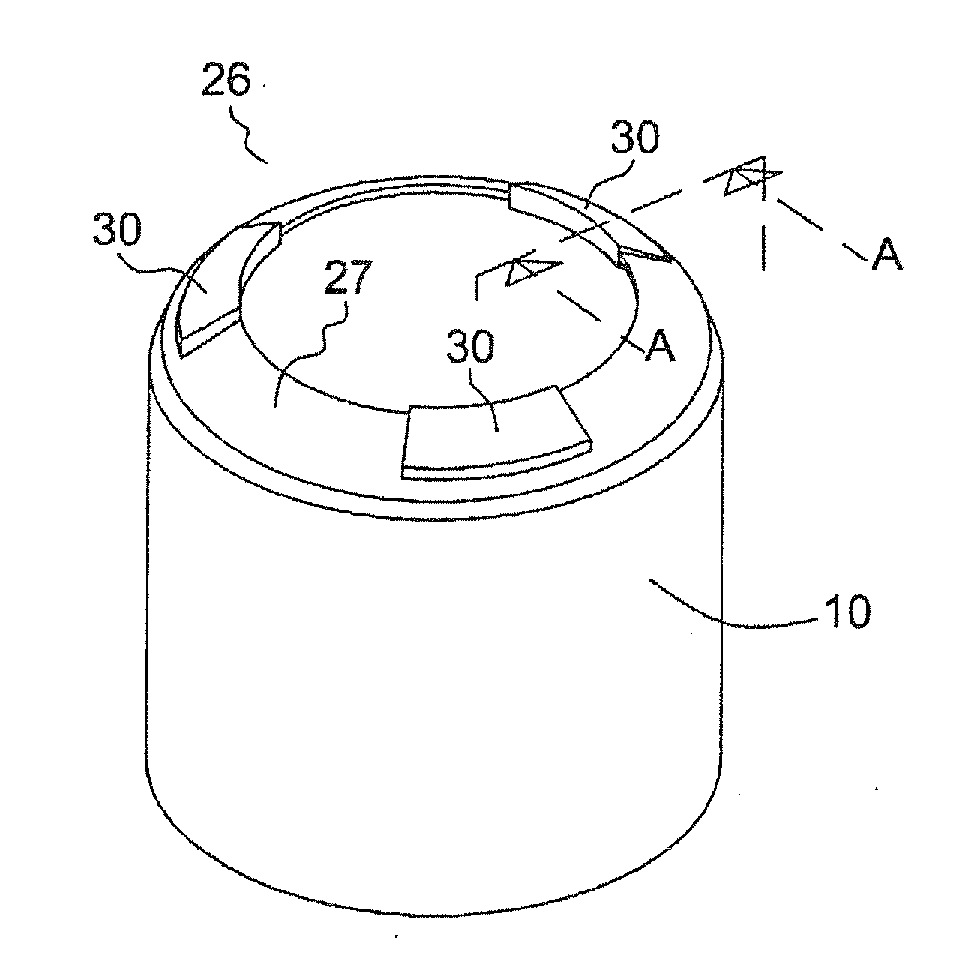

Procedure (25) for the manufacture of a tube (31) made of flexible materials provided with a skirt and head, in which a skirt-semihead unit (26) of the tube (31) is manufactured in a first in-mould injection process (9) that includes in-mould labelling, the head (20) of the tube (31) then being applied on the skirt-semihead unit (26) in a second process (29), preferably an over-moulding process and with the head (20) embedding the semihead (27). By means of this procedure (25) it is possible to avoid the use of printing machines as well as the use of alternative out-of-line decoration machines, thereby cutting manufacturing times and costs.
First Claim
Other Claims data not available
