Wrench apparatus with adjustable head
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 27, 2008
app pub date -
May 19, 2008
filing date -
May 25, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

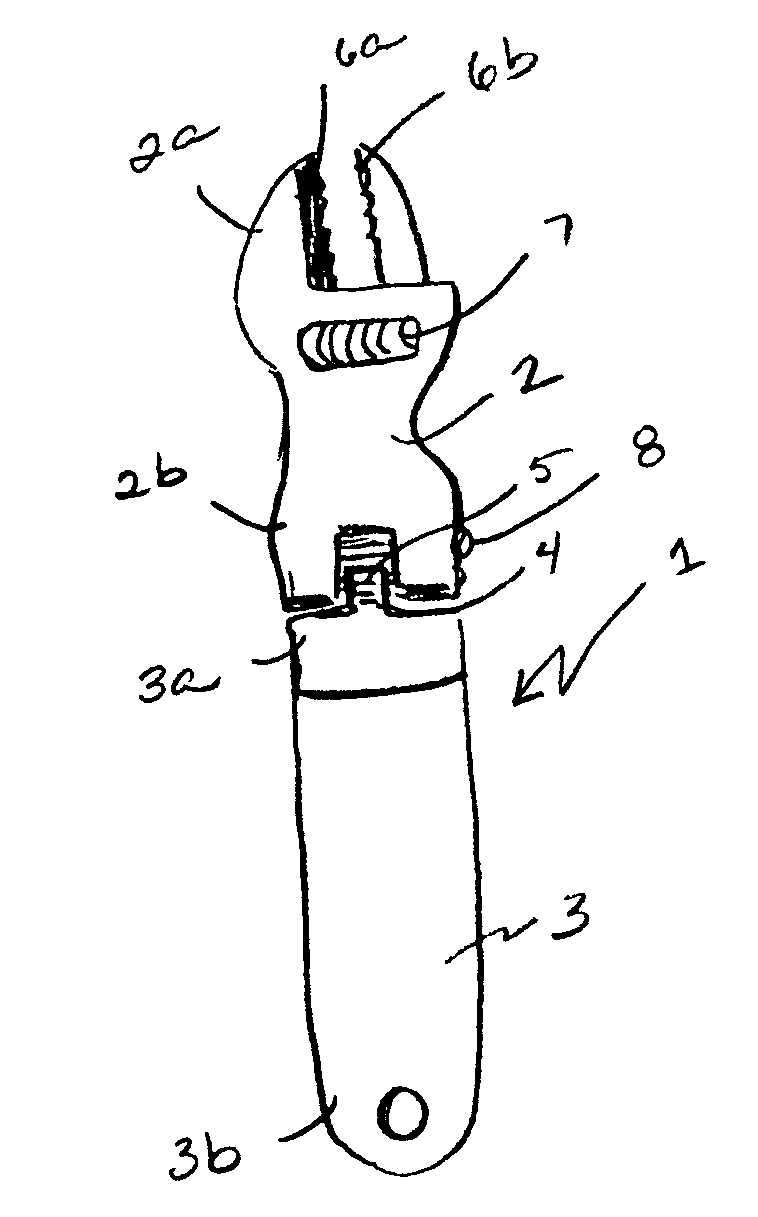

A wrench device having an adjustable head is provided, and the device comprises: a handle having opposing top and bottom ends, the top end having a protrusion, and the protrusion having a plurality of external slots; a wrench head having opposing top and bottom ends, the top end having at least one stationary wrench contact surface and at least one moveable wrench contact surface, and the bottom end of the wrench head comprising a U-shaped component designed to interact with the protrusion of the top end of the handle; a device for controlling the movement of the moveable wrench contact surface to determine a distance between the stationary wrench contact surface and the moveable wrench contact surface; and a device for engaging the slots of the protrusion to thereby allow movement of the wrench head and lock the head to a desired position.
First Claim
Other Claims data not available
