Low power Fast Hadamard transform
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 20, 2008
app pub date -
May 14, 2007
filing date -
May 14, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

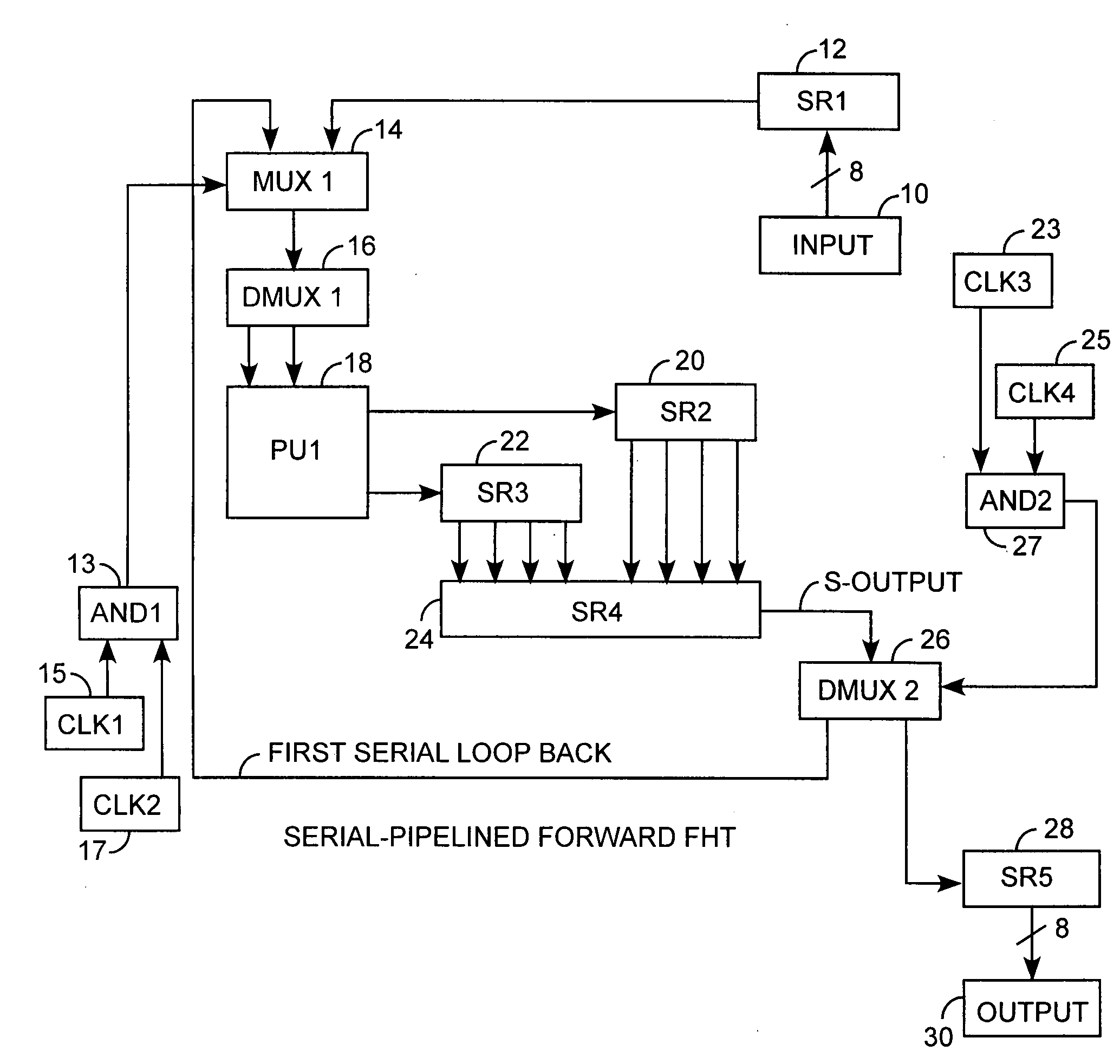

Fast Hadamard transforms (FHT) are implemented using a pipelined architecture having an input stage, a processing stage, and an output stage, the FHT having a single internal loop back between the output stage and the input stage, the processing stage having at least one Hadamard processing unit. The FHT implementations provided both forward and inverse transformations, and, lossless normalized and lossfull unnormalized transformations, while the FHT implementation includes only multiplexers, demultiplexer, latches, and shift registers, and while, the processing unit stage includes processing units using only shift registers and effective adders, for fast, low power, and low weight Hadamard transform implementations.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2007 Application Filing Year
- G06F Class
- 34585 Applications Filed
- 24142 Patents Issued To-Date
- 69.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G06F Class
- 1.31 % this patent is cited more than
- 17 Age
