FLASH/DYNAMIC RANDOM ACCESS MEMORY FIELD PROGRAMMABLE GATE ARRAY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 29, 2008
filing date -
Jul 17, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance

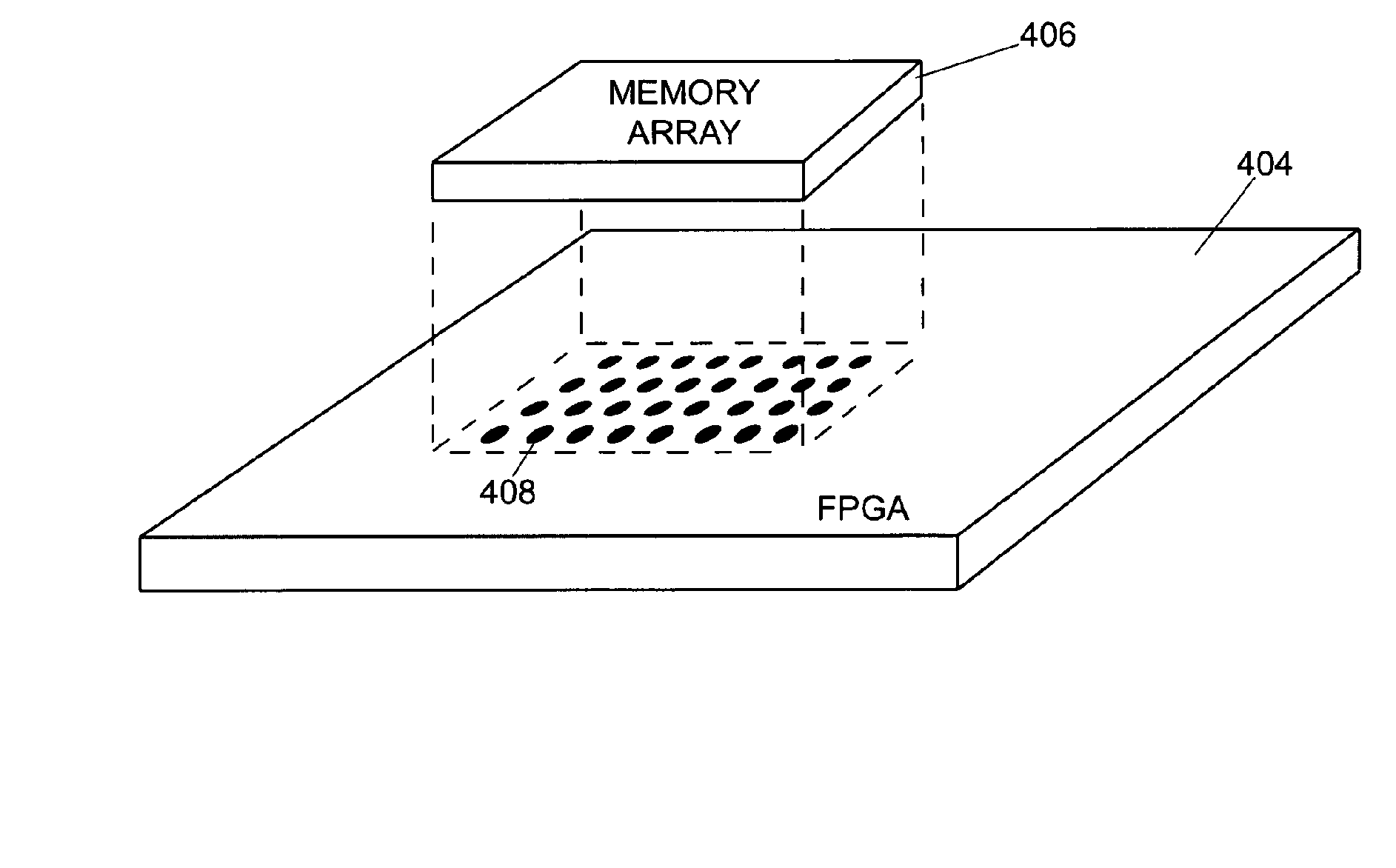

Abstract
A circuit for selectively interconnecting two nodes in an integrated circuit device includes a memory array having a plurality of wordlines and a plurality of bitlines. A refresh transistor has a source coupled to one of the plurality of bitlines, a control gate coupled to a dynamic random access memory wordline and a drain. A switching transistor has a gate coupled to the drain of the refresh transistor, a source coupled to a first one of the nodes and a drain coupled to a second one of the nodes. An address decoder for supplies periodic signals to the wordlines and the dynamic random access memory wordline.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 18 Citation Count
- G11C Class
- 40.95 % this patent is cited more than
- 17 Age
