Rewinding machine for rewinding and forming a paper roll
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 6, 2008
app pub date -
Apr 28, 2008
filing date -
May 4, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

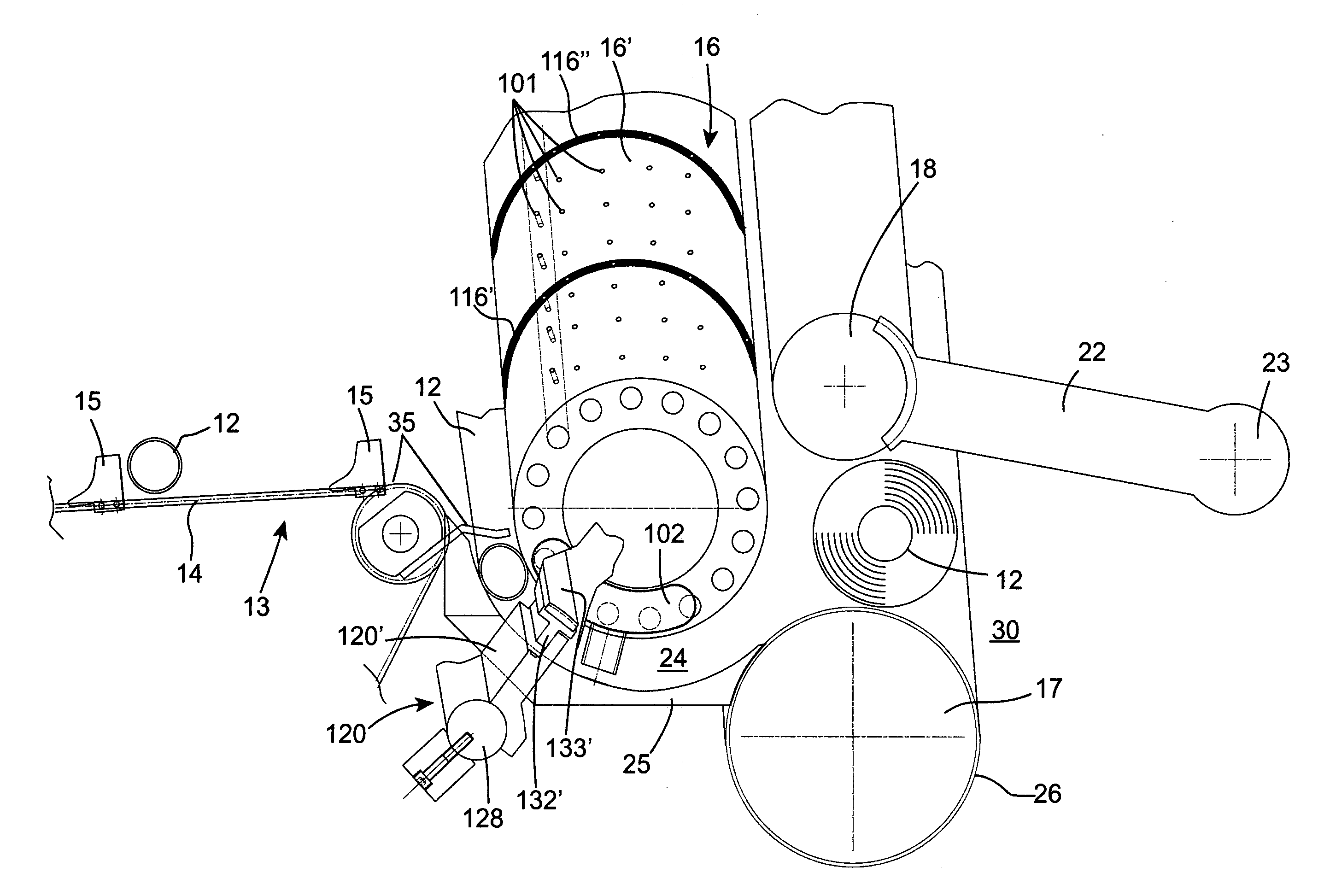

An improved rewinding machine for rewinding and forming a paper roll comprising three rollers (16, 17, 18) with axis parallel to each other and perpendicular to the direction of forward movement of the paper, wherein the two upper and lower winding rollers (16, 17) cooperate with a third roller (18), adapted to keep a given pressure on a roll, or log, to form a finished roll by winding of the paper, which passes on the upper winding roller (16), around a core (12), an introduction group (13) of the cores (12) one after the other into a channel (24) provided beneath the upper roller (16), and a paper stop group (120) which cooperates with at least one first surface portion (16', 16'') of the upper roller (16) rotating around a pin (128), wherein the stop group (120) comprises at least one paper stop element (120', 120'') provided with an arm (132', 132'') rotating around the pin (128) and with a free end made up of a smooth surface (133', 133''), and in which the at least one first surface portion (16', 16'') of the upper roller (16) is smooth and provided with a plurality of air suctioning holes (101).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B65H Class
- 7.29 % this patent is cited more than
- 17 Age
