COMPOSITE KNIFE BLADE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 16, 2008
app pub date -
Jun 8, 2007
filing date -
Apr 12, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

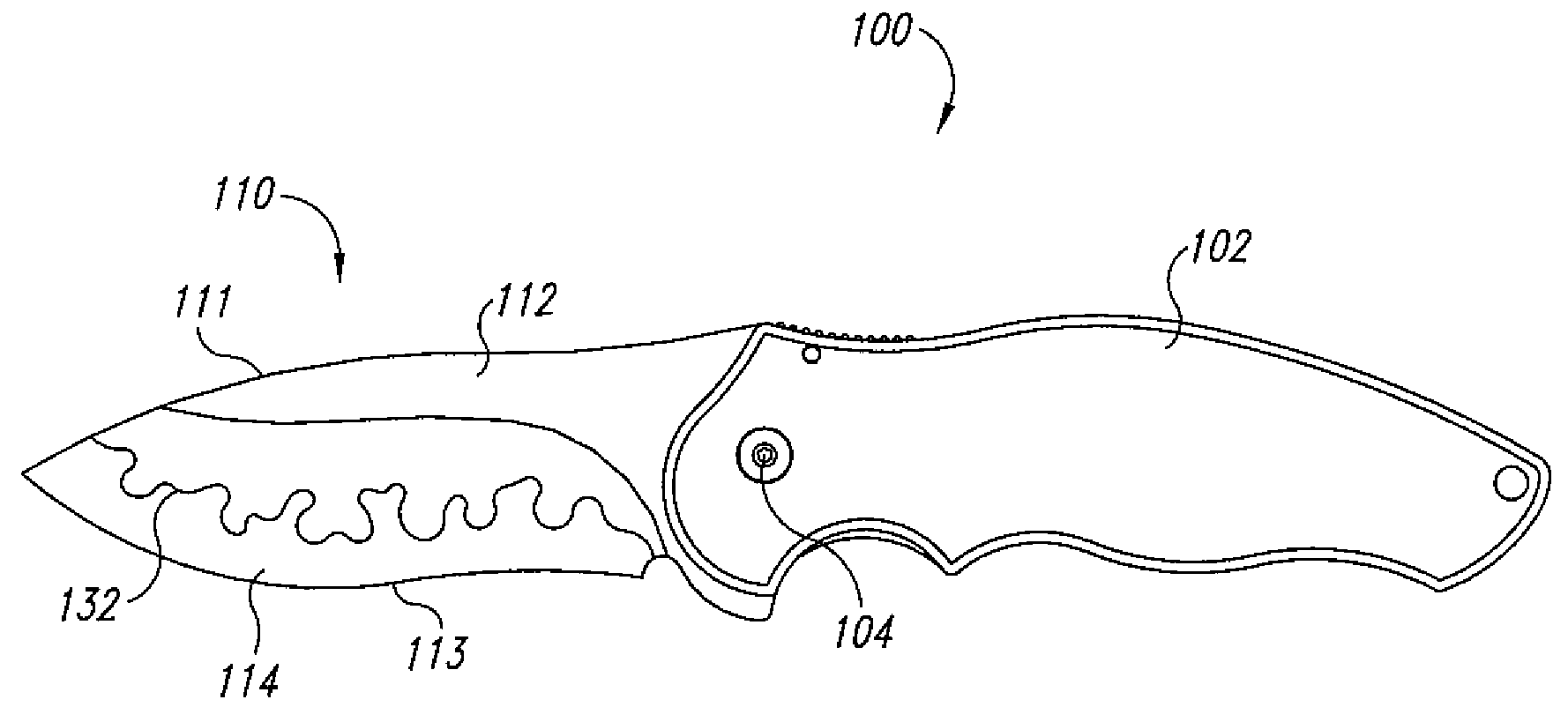

A composite knife blade includes a cutting-edge piece of a first alloy, a back piece of a second alloy different from the first alloy, the cutting-edge piece and the back piece are brazed together at a serpentine joint. The cutting-edge piece has a high Rockwell hardness value, as compared to a hardness of the back piece. A method of manufacture of the knife blade includes fine blanking the back piece of from a sheet of the first alloy, laser cutting the cutting-edge piece from a sheet of the second alloy, and brazing the first piece to the second piece to form a composite blade. The composite blade is then cooled from the brazing temperature to an austenizing temperature of the cutting-edge piece, and quenched, to harden the cutting-edge piece.
First Claim
Other Claims data not available
