Circuit breakers with ground fault and overcurrent trip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 16, 2010
Grant Date -
Oct 9, 2008
app pub date -
Mar 13, 2008
filing date -
Mar 13, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

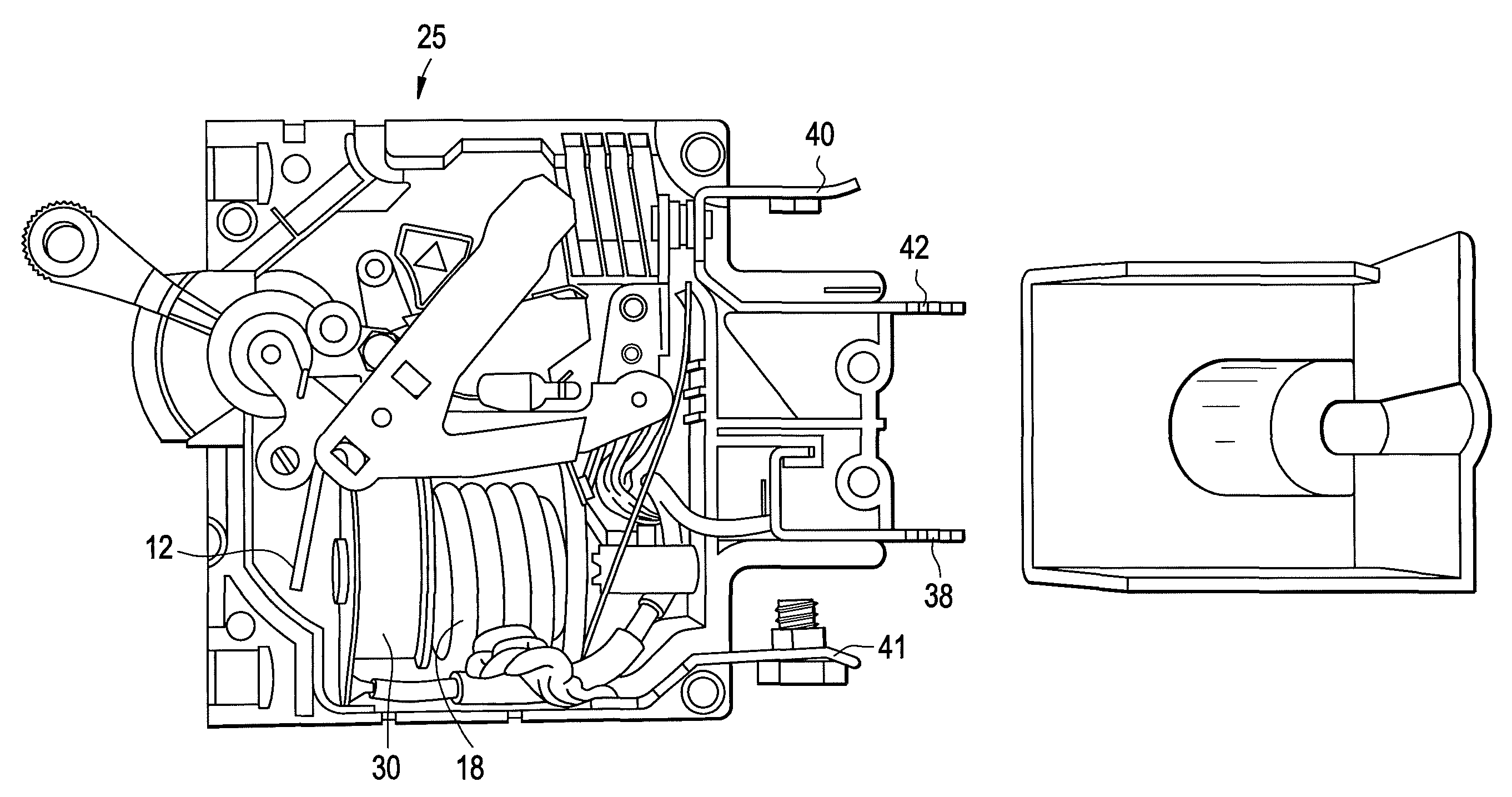

A circuit breaker apparatus may be used to interrupt overcurrent and ground fault in a circuit. The circuit breaker apparatus may include an overcurrent coil for tripping the circuit breaker apparatus, a voltage coil also for tripping the circuit breaker apparatus located proximate to the overcurrent coil, and ground fault electronics connected to the voltage coil and structured to detect a ground fault in the circuit when the ground fault exceeds a threshold level. The ground fault electronics can be structured to send a trip signal to the voltage coil when a ground fault is detected, and the voltage coil can be structured to trip the circuit breaker apparatus when it receives the trip signal from the ground fault electronics.
First Claim
Other Claims data not available
