Locking device for the closing lid of washing machines

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20080238113A1
SERIAL NO

12076749

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

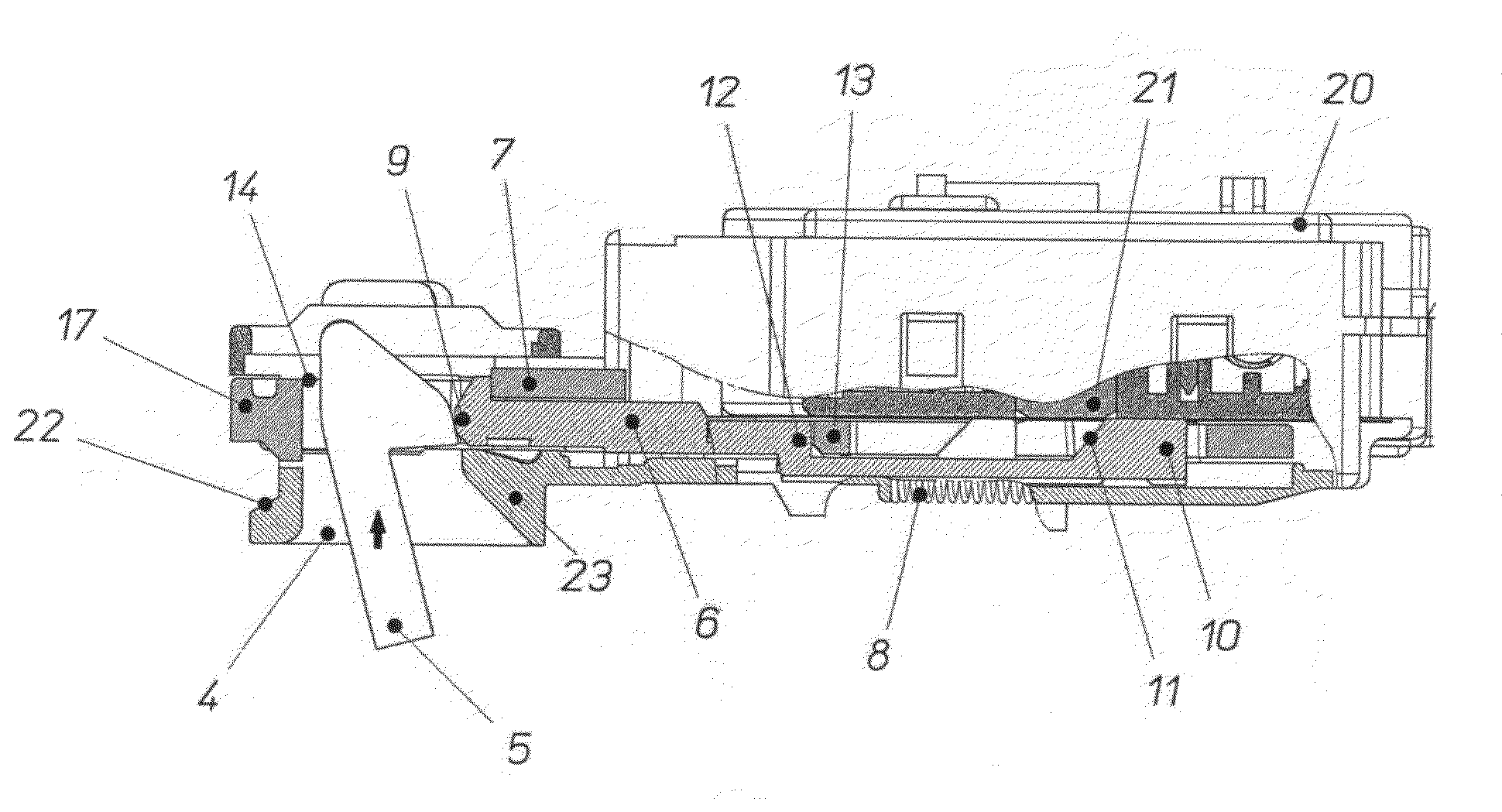

Locking device for the closing lid of a washing machine or the like, comprising an enclosure (1) housing a cursor (7) sliding between a holding position of the latch (5) mounted on the lid and a releasing position from the same, and an electromechanical delaying device (20) capable of locking said cursor (7) through a pawl (21) in a holding position. The cursor (7) is actuated by a second sliding cursor (6) subjected to the action of elastic means (8) and fitted with a portion (11) profiled to form a slope, which is capable of inducing a backward motion of the pawl (21) in case of a forced opening of the lid.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
ELETTROTECNICA ROLD S R L20014 NERVIANO

International Classification(s)

loading....
  • 2008 Application Filing Year
  • E05C Class
  • 247 Applications Filed
  • 161 Patents Issued To-Date
  • 65.19 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20082009201020112012201320142015201620170255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Ricchitelli, Onofrio Pogliano Milanese (Milano 1 7

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 7 Citation Count
  • E05C Class
  • 0.85 % this patent is cited more than
  • 17 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges173261122201 - 1011 - 2021 - 3031 - 4041 - 5051 - 6005101520253035404550556065707580

Forward Cite Landscape

Load Citation
