Multipurpose sawhorse end frame
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2011
Grant Date -
Oct 2, 2008
app pub date -
Mar 26, 2008
filing date -
Mar 26, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

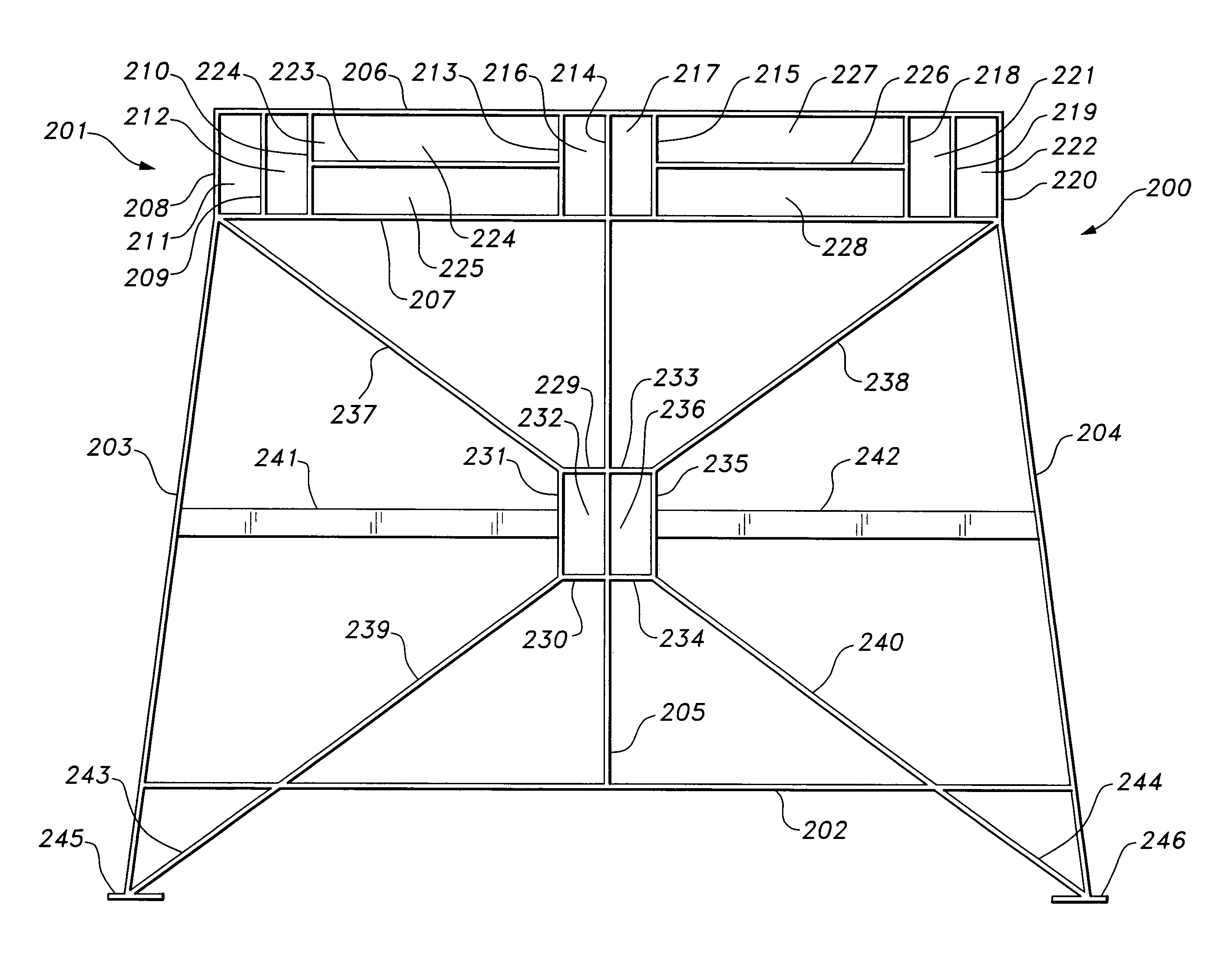

The multipurpose sawhorse end frame has a top section defining center and lateral slots for receiving 2″×4″ beams and central slots for 2″×12″ planks, a central section with center slots for receiving 2″×4″ beams and lateral support bars for supporting 2″×12″ planks, and a bottom section having feet for supporting the frame. A plurality of diagonal braces maintain rigidity of the end frame and provide the end frame with structural strength. Two or more end frames may be configured as a sawhorse, a scaffold, a workbench, a table, or other temporary construction accessory using scrap lumber and without fasteners. The multipurpose sawhorse end frame may be made from lightweight aluminum or other suitable material.
First Claim
Other Claims data not available
