DECORATIVE SHEET METAL ORNAMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 2, 2008
app pub date -
Mar 30, 2007
filing date -
Mar 30, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

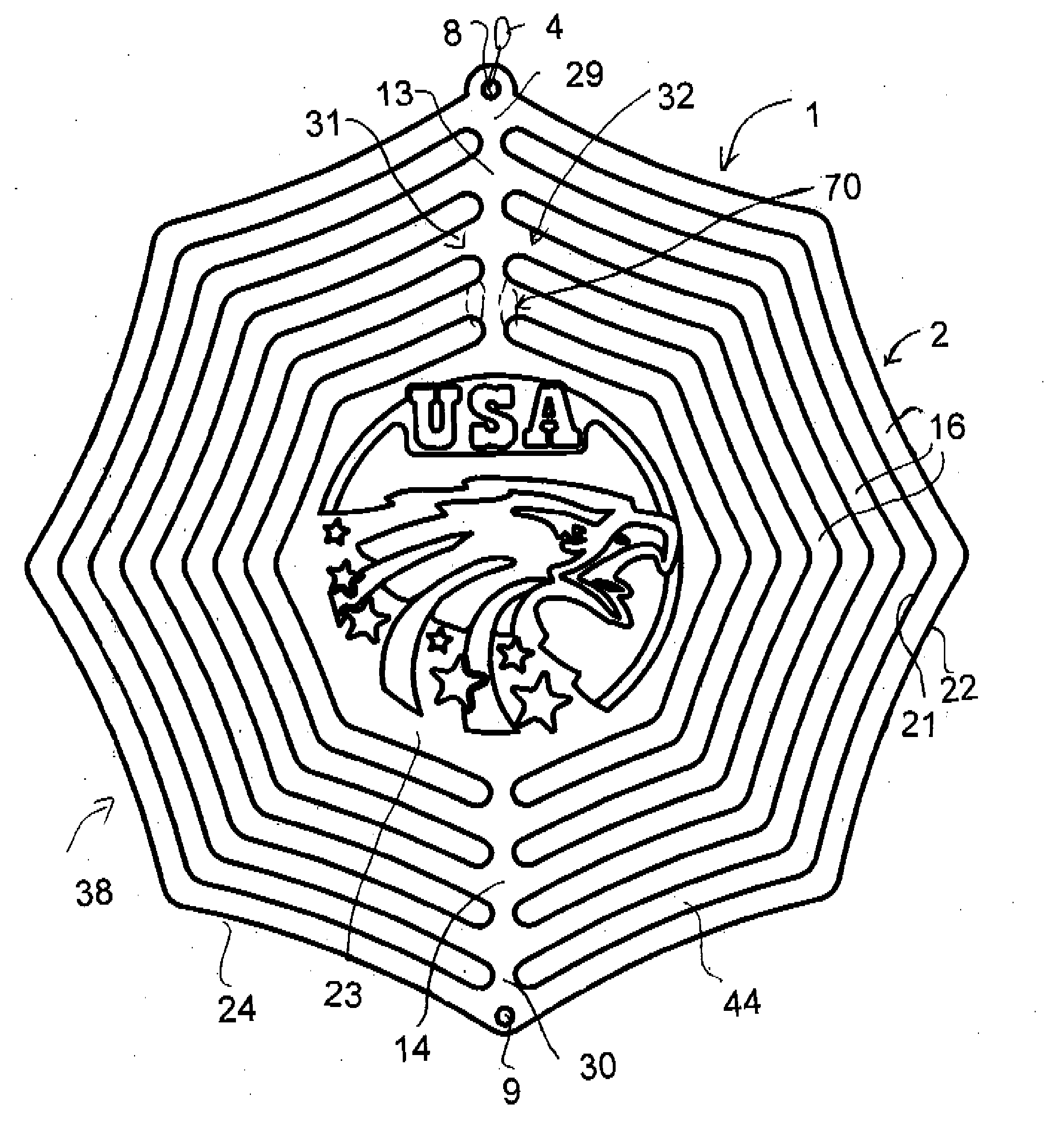

A three dimensional decorative spinner is formed of sheet metal by cutting from a flat metal sheet and, while the cut metal sheet remains flat and after it is coated by a powder coat covering layer which is baked, different color layer or layers of different patterns are silk screen printed onto the sheet on each side. The space between each strip and the next is sufficient that the printed covering layers on each side of the strip meet so as to also cover edges of the strips at the space with the covering layers on the each strip being separated from the covering layers on the next adjacent strip by the space between the strips. After the baking of the coating and printing of the colored layer or layers at least some of the strips are bent out of the flat plane of the metal sheet with the width of each strip at the area of bending of the strip being arranged such the bending occurs without cracking the covering layers.
First Claim
Other Claims data not available
