Method and Warning Device for Graphically Processing an Image of a Camera
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 18, 2008
app pub date -
Jan 13, 2005
filing date -
Feb 23, 2004
priority date (Note) -
Abandoned
status (Latency Note)
Importance

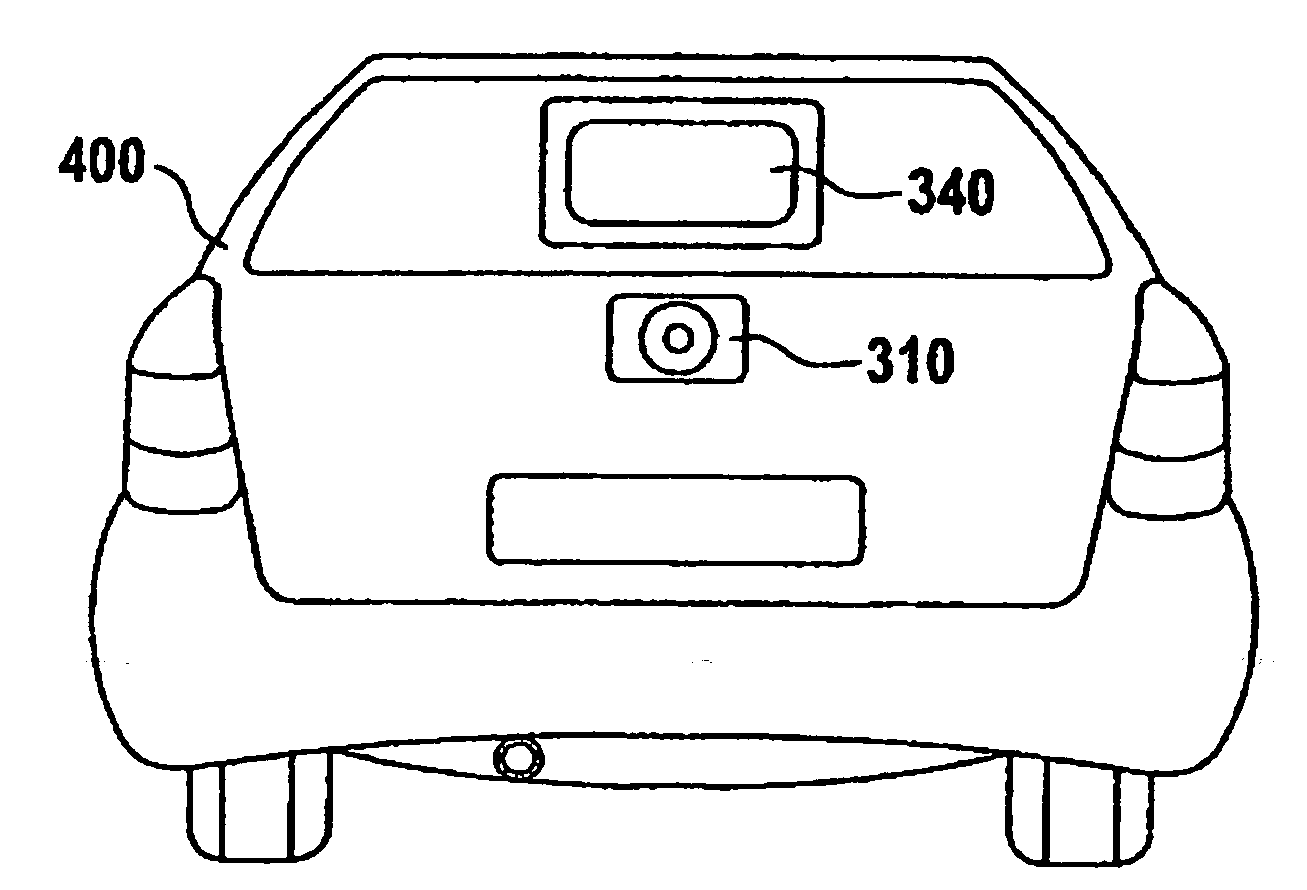

Abstract
The invention relates to a method for graphically processing an image of the surroundings of a motor vehicle, the image being been provided by a camera device. It is known fact that said images are processed in such a way that the danger potential for the motor vehicle posed by an obstacle in the surroundings is visualized optically by or highlighted for the driver. According to the invention, the image provided by the camera device is processed taking into account the position of the obstacle in the image in order to highlight said danger potential in an even clearer manner for the driver. To this end, the actual position of the obstacle in the surroundings of the motor vehicle is initially determined. The position of the obstacle in the image corresponding to the actual position of the obstacle in the surroundings is subsequently determined.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 11 Citation Count
- B60Q Class
- 57.14 % this patent is cited more than
- 17 Age
