PULSE CIRCUIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 21, 2008
app pub date -
Feb 14, 2008
filing date -
Feb 16, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

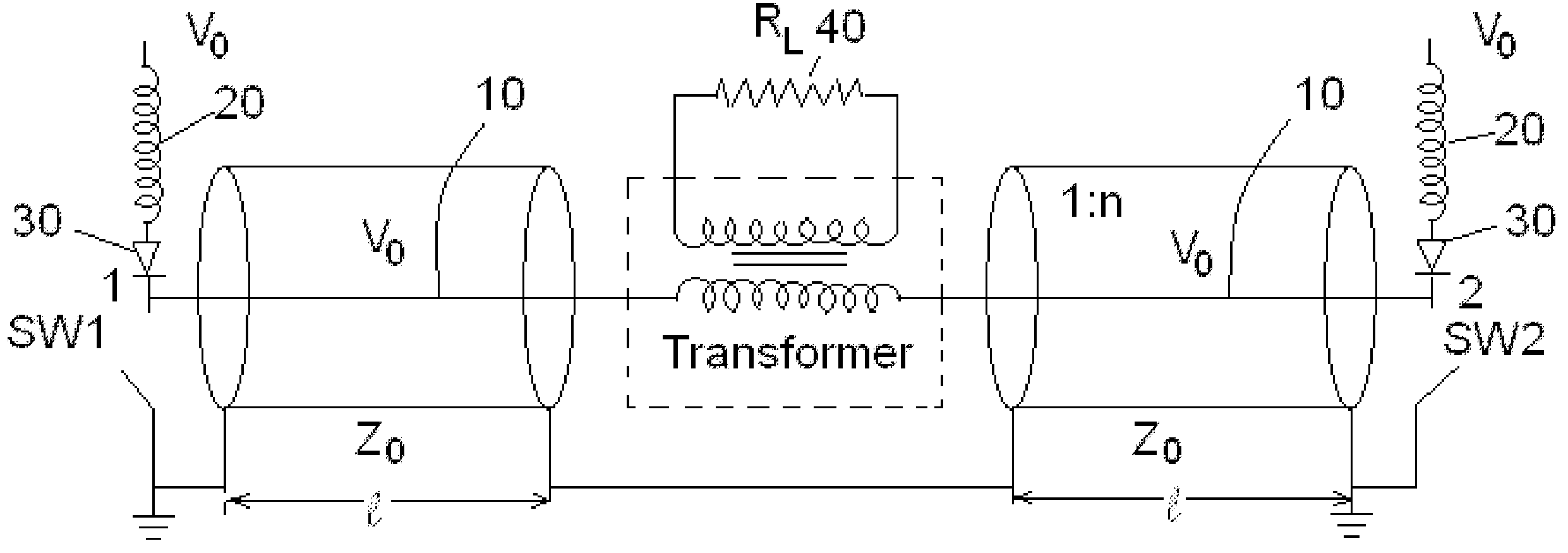

In an embodiment of the invention there is provided a pulse circuit including two transmission lines or other capacitive energy storage circuits resonantly charged by inductors and diodes that are connected to a DC power source. The pulse circuit includes a pulse transformer that may be connected in series with the transmission lines or artificial lines with a turns ratio chosen to match the load impedance to primary circuit impedance or to generate the optimum pulsed voltage source. Multiple switches can be employed to increase the repetition frequency of the pulses. For transmission lines and L-C artificial lines, the pulse alternates in polarity; for simple capacitive energy storage, the pulses are unipolar.
