THERMALLY STABLE COCURRENT GASIFICATION SYSTEM AND ASSOCIATED METHODS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 21, 2008
app pub date -
Feb 21, 2008
filing date -
Feb 21, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

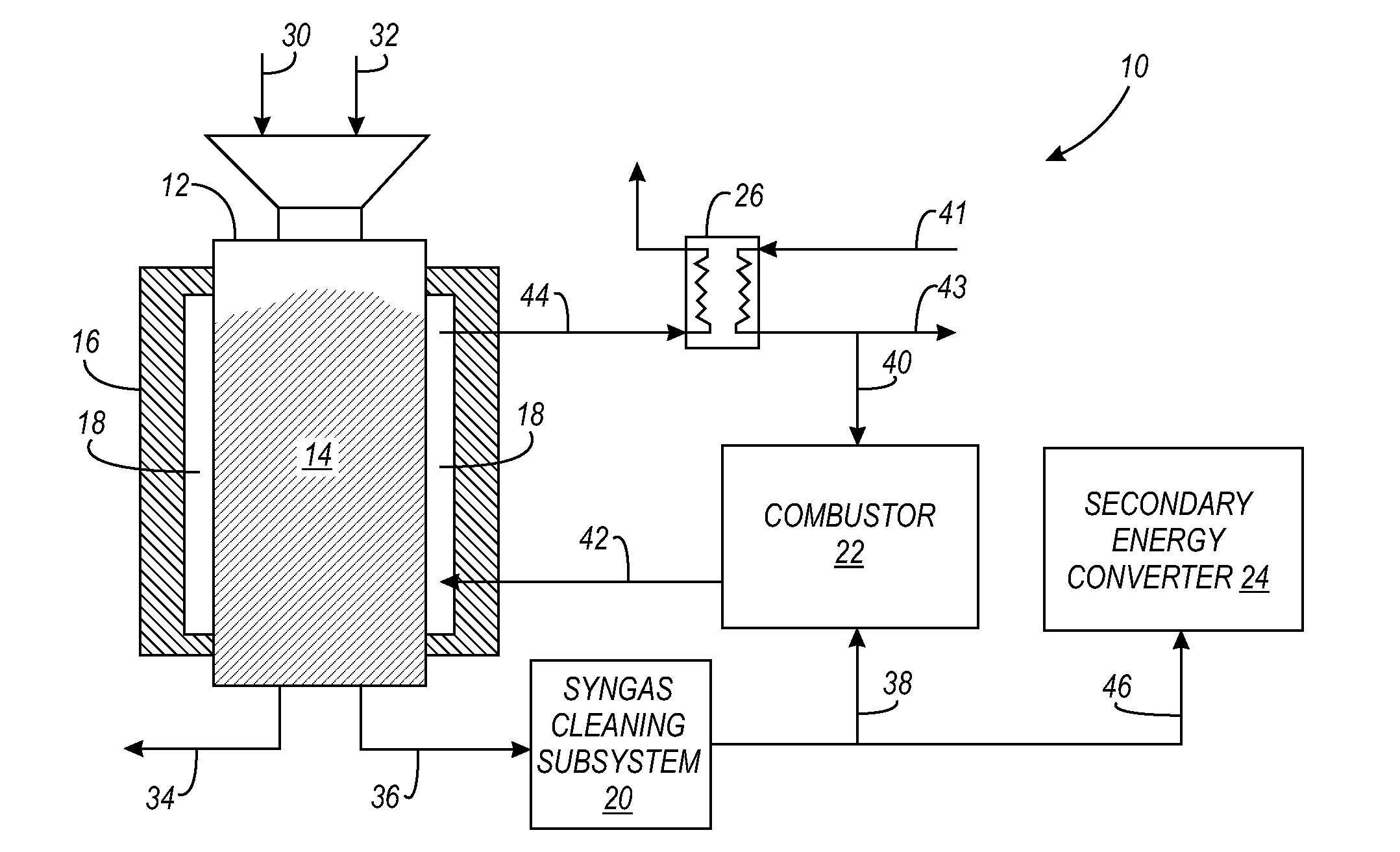

A method and apparatus, in one example, relates to a system and method for the generation of very low-tar, high-energy synthesis gas from a large variety of carbonaceous feedstock, including those with higher moisture levels than conventional gasifiers. The system comprises a gasification reactor wherein a portion of the energy of the output syngas of the reactor is used to heat the gasification zone of the reactor via an annular space surrounding the gasification zone of the gasifier, to maintain a temperature condition above 800.degree. C. The maintenance of a long, quasi-uniform high-temperature gasification zone reduces the amount of input air or oxygen, reduces bridging within the gasifier, cracks pyrolysis oils, increases the conversion of char, minimizes heat losses from the bed, and converts moisture within the packed bed into a gasification medium. This results in a very low tar synthesis gas with less nitrogen dilution and higher energy content than conventional gasifiers. The reduction in bridging reduces operating costs.
First Claim
Other Claims data not available
