Device for smoothing the load current supplied to a load
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 8, 2010
Grant Date -
Aug 14, 2008
app pub date -
Jan 16, 2006
filing date -
Jan 26, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

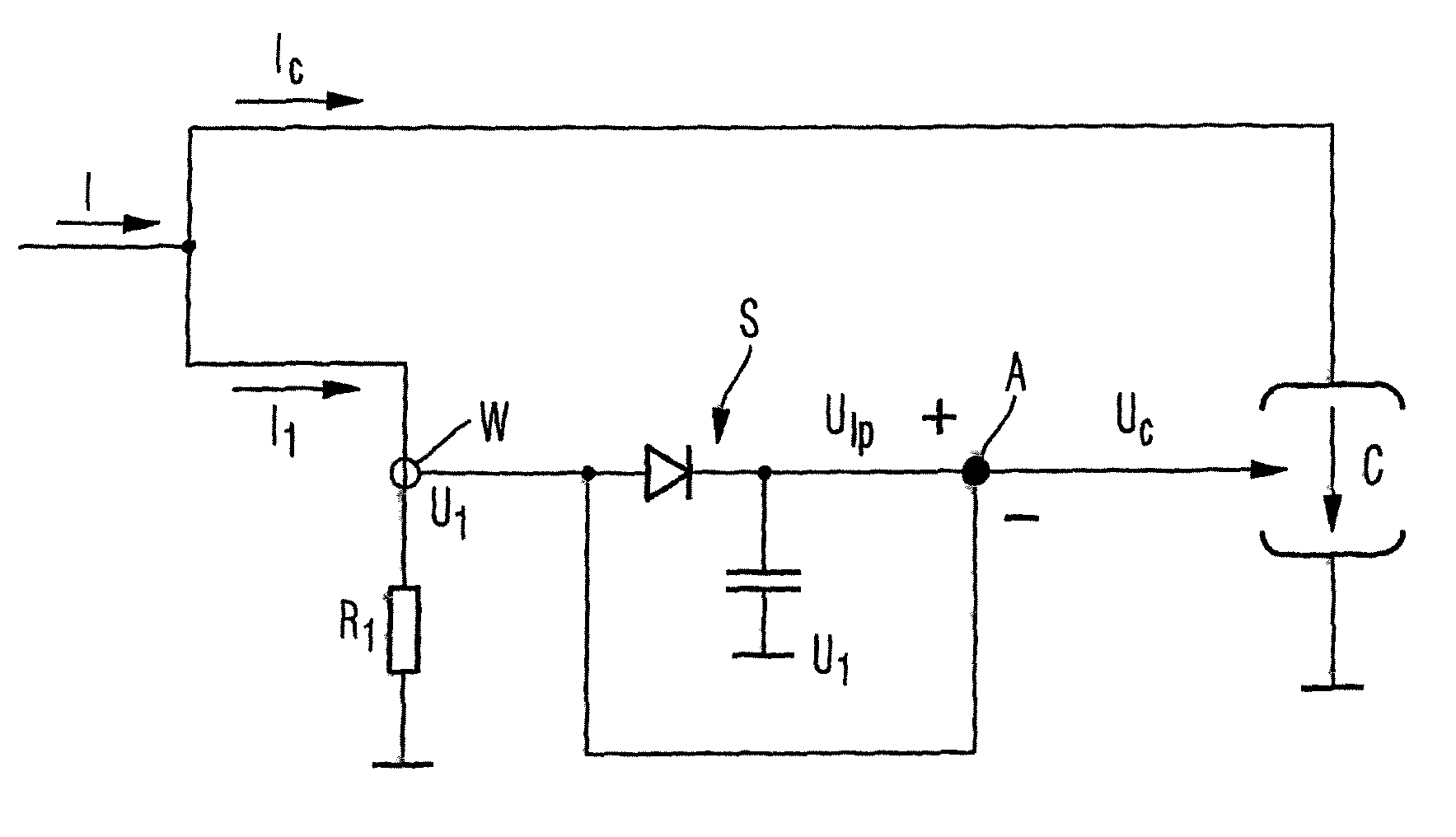

The invention relates to smoothing a consumer electrical circuit supplied by a controllable current sink connected in parallel to the consumer. For this purpose, measuring voltage proportional to a load current supplied to the consumer is derived therefrom. A pick value measuring device makes it possible to determine a maximum value thereof. The difference between the maximum value and measuring voltage makes it possible to control the voltage-controlled current sink in such a way that the sum of a compensation current supplied by the current sink and the load current which runs by the consumer is substantially constant.
First Claim
Other Claims data not available
