Roller apparatus, printing method and method of fabricating liquid crystal display device using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 3, 2015
Issued Date -
N/A
app pub date -
Dec 21, 2007
filing date -
Feb 6, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...

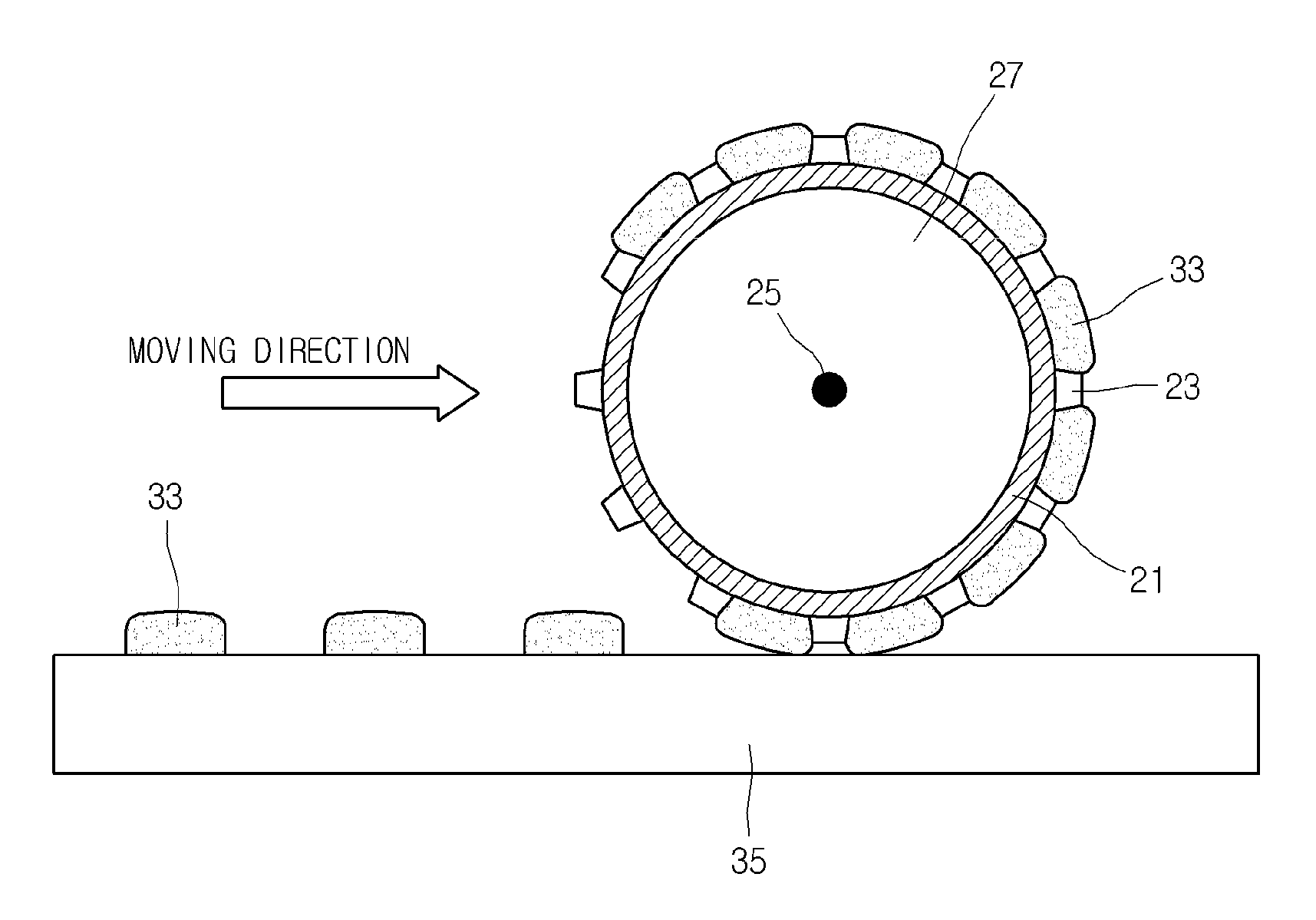

Abstract
Provided are a roller apparatus, a printing method and a method of fabricating an LCD device using the same, which can minimize the number of processes and a printing defect. In the printing method, first patterns are formed on a blanket. The first patterns have different surface energy from that of the blanket, and the blanket is formed around a roller. The roller is rotated and a printing material is dropped to form second patterns on the blanket between the first patterns. The second patterns are transferred from the roller onto a substrate.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2007 Application Filing Year
- B41M Class
- 258 Applications Filed
- 116 Patents Issued To-Date
- 44.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41M Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 3, 2026 |
