ALIGNED NANOPARTICLE CHANNEL AND METHOD OF FABRICATING ALIGNED NANOPARTICLE CHANNEL BY APPLYING SHEAR FORCE TO IMMISCIBLE BINARY POLYMER-BLENDED NANOPARTICLE COMPOSITE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 3, 2008
app pub date -
Aug 28, 2007
filing date -
Aug 30, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

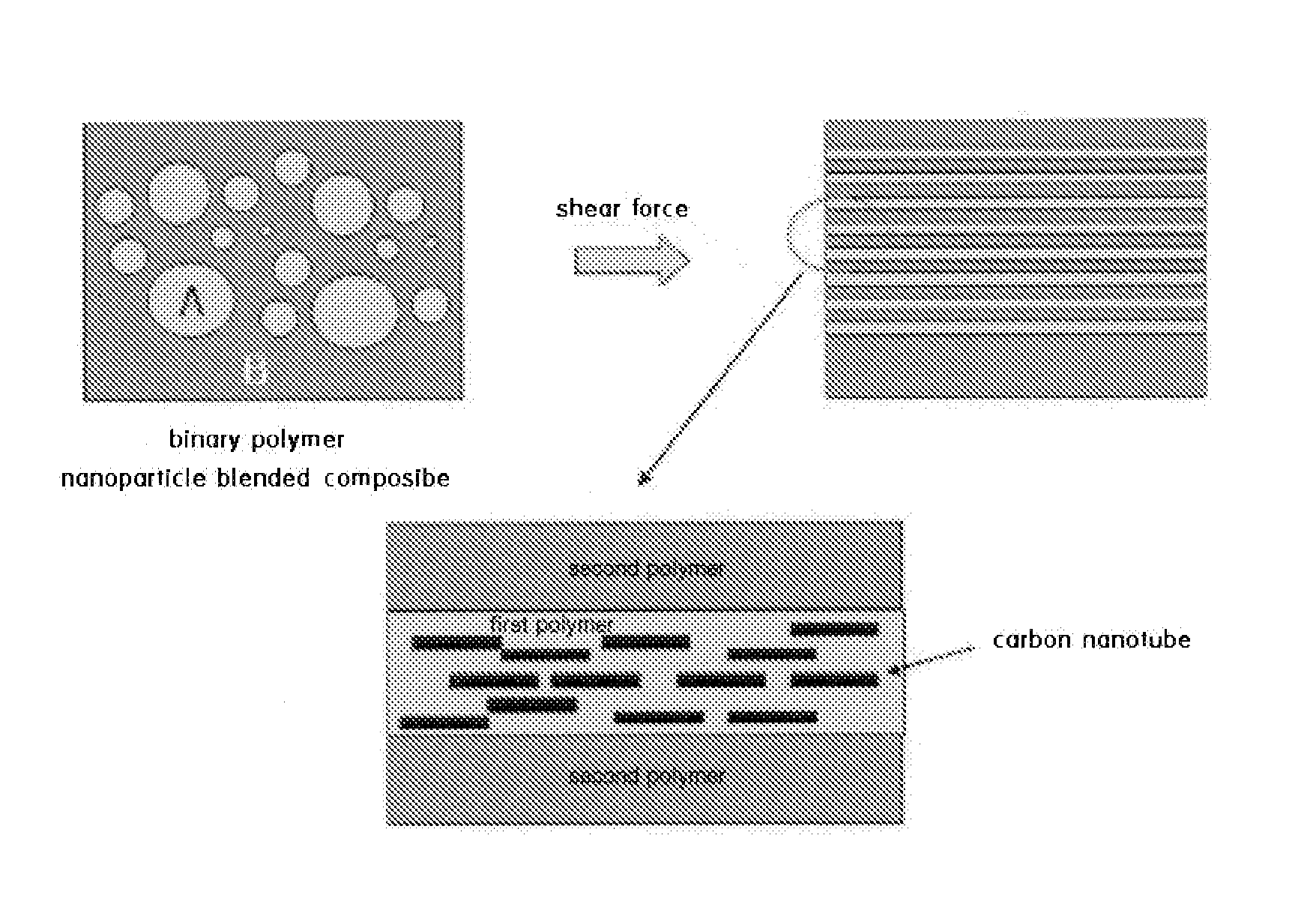

A method of fabricating an aligned nanoparticle channel, including a first step of forming a polymer nanoparticle blended composite by dispersing nanoparticles in a first polymer; a second step of forming a binary polymer nanoparticle blended composite by melt-blending the polymer nanoparticle blended composite with a second polymer, which is immiscible with the first polymer, and then cooling the mixture; and a third step of forming an aligned nanoparticle channel by applying a shear force to the binary polymer nanoparticle blended composite such that the nanoparticles dispersed in the first polymer are aligned in a direction parallel to the shear force, and an aligned nanoparticle channel fabricated using the method.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR100911884 | Jun 29, 2007 |
International Classification(s)
- 2007 Application Filing Year
- B01F Class
- 505 Applications Filed
- 315 Patents Issued To-Date
- 62.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B01F Class
- 6.67 % this patent is cited more than
- 17 Age
