Monolithic concrete wall expansion joint system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 12, 2008
app pub date -
Dec 7, 2006
filing date -
Dec 7, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

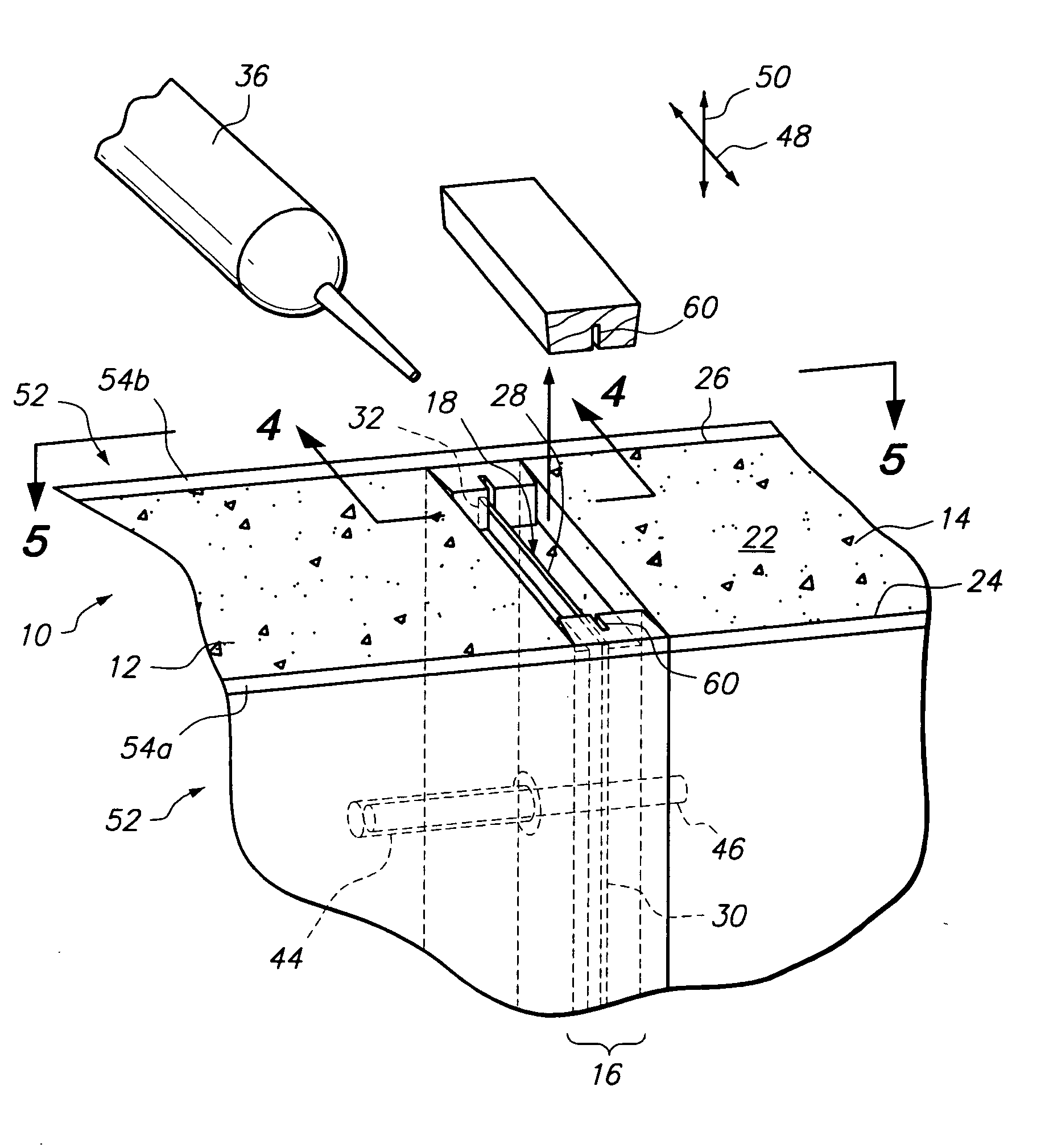

An expansion joint system for a wall is provided herein wherein a first concrete wall component is substantially separated from a second concrete wall component via a rigid plate such that contraction of the first concrete wall component does not create significant stresses in the first or second concrete wall component so as to create cracks in the first or second concrete wall component. Moreover, a compressible material may be disposed between the rigid plate and/or the first and/or second concrete wall component such that expansion of the first concrete wall component compresses the compressible material instead of imposing significant stresses on the first or second concrete wall component so as to be likely to form cracks in the first or second concrete wall component.
First Claim
Other Claims data not available
