METHOD AND SYSTEM FOR WIDE-FIELD MULTI-PHOTON MICROSCOPY HAVING A CONFOCAL EXCITATION PLANE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 22, 2008
app pub date -
Nov 20, 2006
filing date -
Nov 20, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

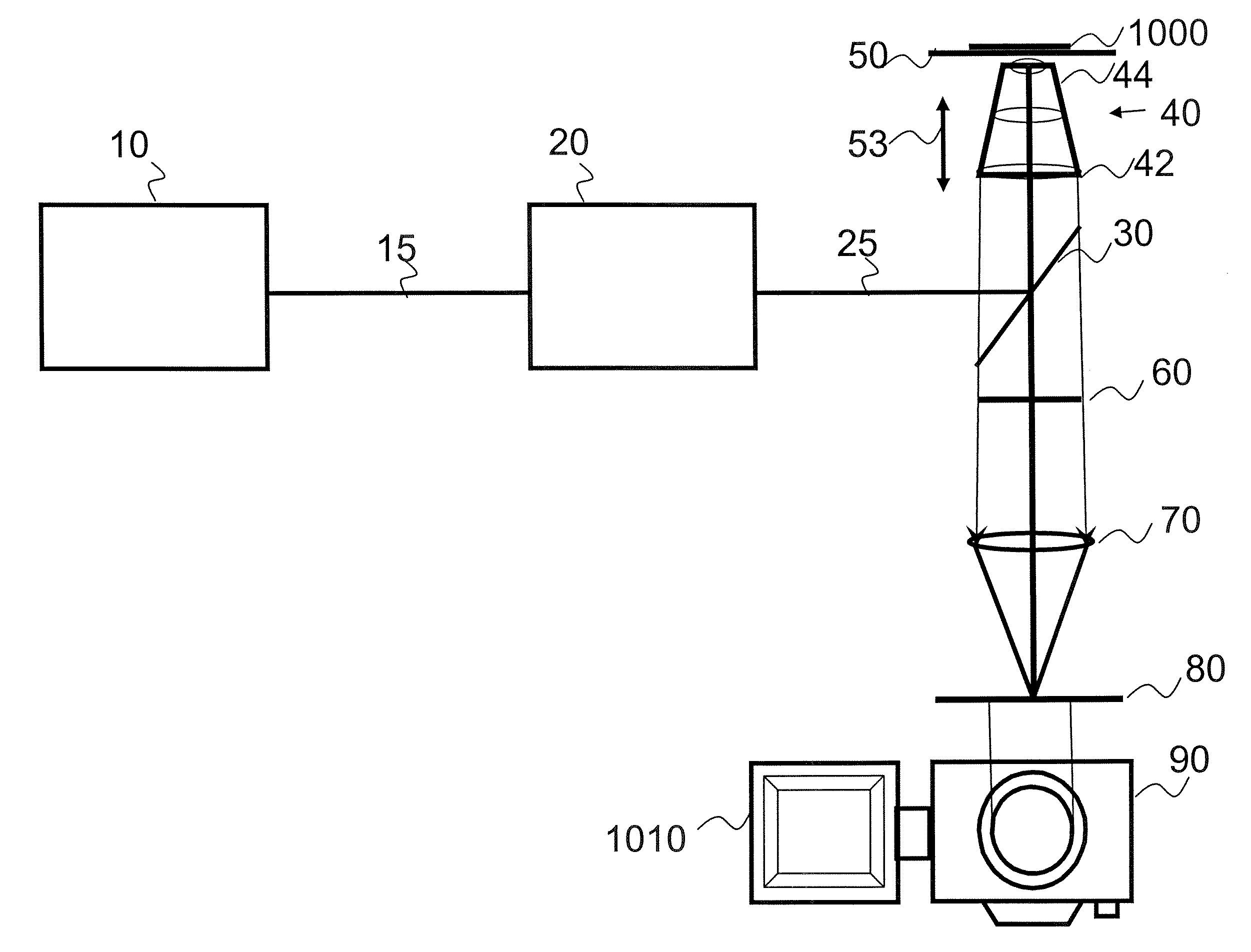

A wide field microscope includes a stage configured to hold a specimen having a fluorescent material therein, and a multi-photon excitation light source configured to produce excitation light having a single photon energy less than an absorption energy required for single photon excitation of said fluorescent material. A beam expansion unit is optically coupled to the light source and configured to expand the excitation light with reduced pulse spreading characteristics, and an infinity corrected objective optically coupled to the expansion unit and configured to focus the excitation light onto the specimen such that multi-photon excitation of the fluorescent material simultaneously occurs over a predetermined area of the specimen. A focus lens is configured to focus emission light emitted from said predetermined area of the specimen onto at least two pixels of an image detector simultaneously.
First Claim
Other Claims data not available
