COFFEE MAKER AND VALVE ARRANGEMENTS THEREFOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 27, 2008
app pub date -
Sep 21, 2007
filing date -
Sep 21, 2006
priority date (Note) -
Abandoned
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

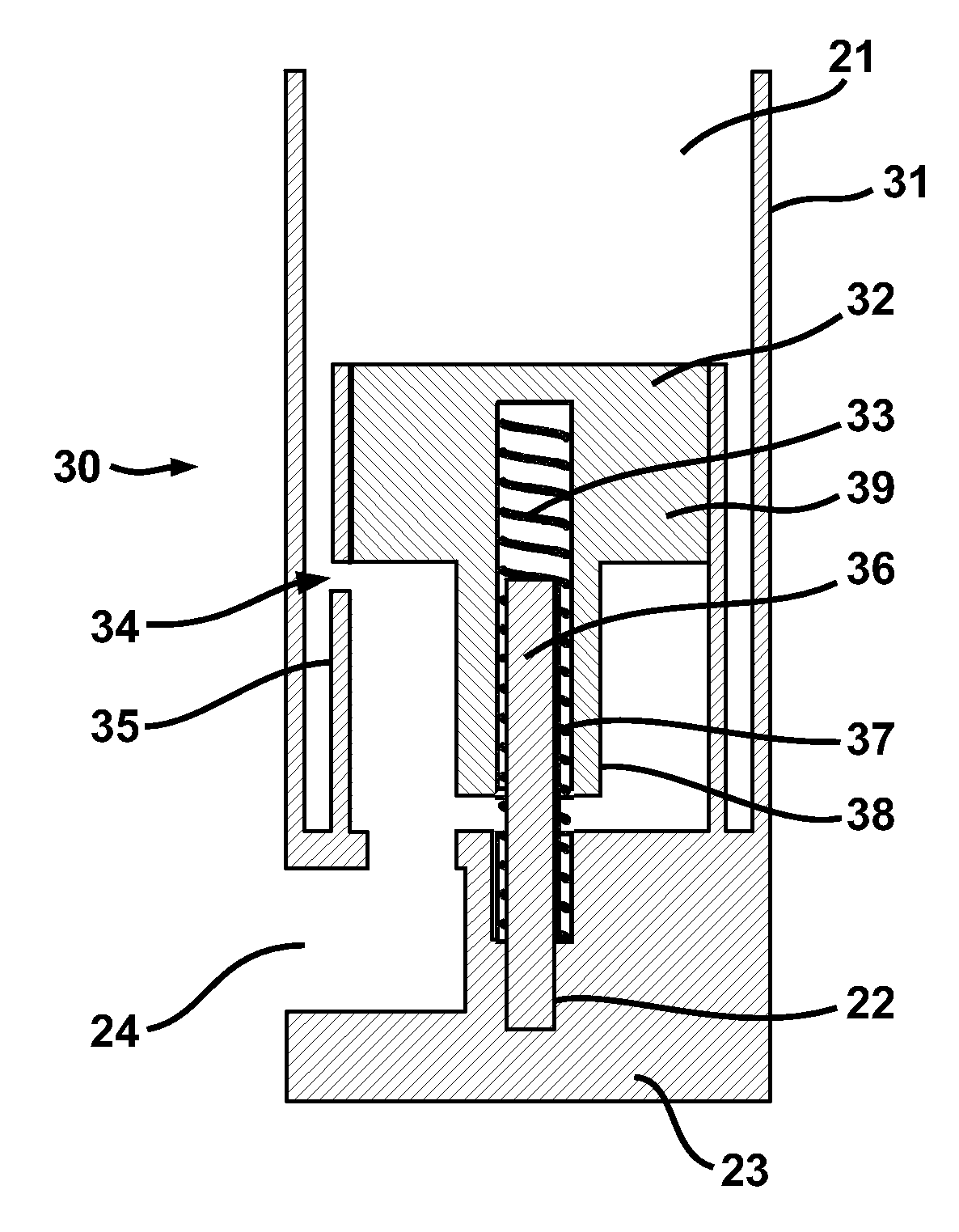

Taught herein is a coffee maker (10) comprising a water tank (20) a heater device (40), a brewing station (50) and a jug or carafe (60) positioned to receive coffee brewed at the station (50), wherein the water tank (20) and the brewing station (50) are interconnected by a water pipe (70), part of which is heated by the heater device (40); the tank (20) is fitted with a flow control valve (30) containing a piston (32) arranged to respond to the head of water in the tank (20) and to heater-induced suction in the pipe (70) by moving within a housing (31) to block or to allow the passage of water from the tank (20) into the pipe (70), thereby to control the flow of water from the tank (20) through the heater (40) to the brewing station (50) so as to ensure that, however much water the tank (20) contains; and the heater (40) is able to transfer sufficient heat to water delivered to the brewing station (50) by way of the pipe (70) to provide brewed coffee at a palatable temperature.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
KENWOOD LIMITED | NEW LANE HAVANT HAMPSHIRE PO9 2NH |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
EDEN, Roland Cynric | Havant, GB | 2 | 5 |
# of filed Patents : 2 Total Citations : 5 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 6.30 % this patent is cited more than
- 17 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
