Inflatable vehicle occupant protection device for inboard pelvis protection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 13, 2008
app pub date -
Sep 11, 2006
filing date -
Sep 11, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

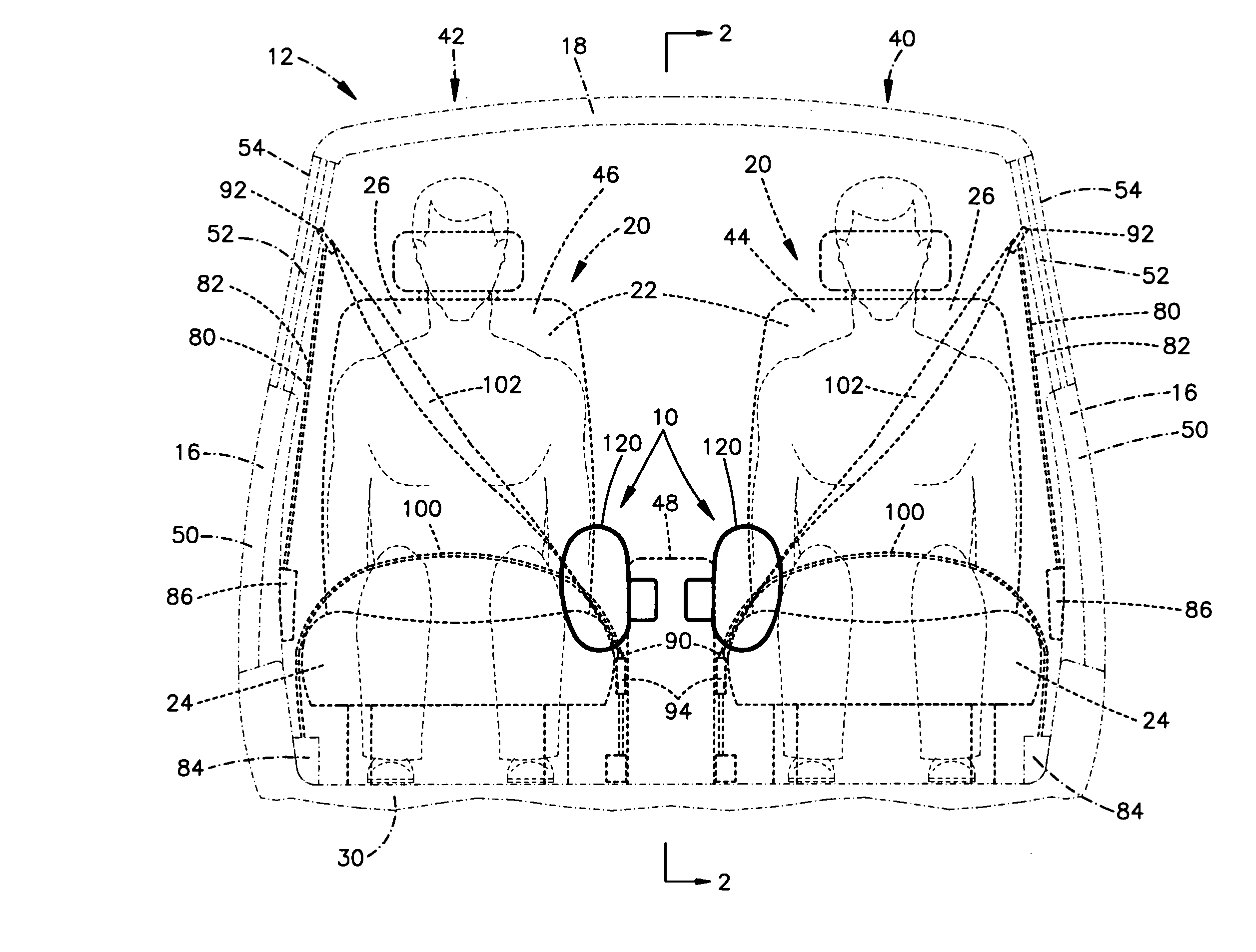

An apparatus (10) helps protect an occupant (20) of a vehicle (12) that has an occupant seat (22) and a center console (48) positioned adjacent the occupant seat. The apparatus (10) includes an inflatable vehicle occupant protection device (120) inflatable from a stored condition to a deployed condition in which the protection device is inflated and positioned between the occupant (20) of the vehicle seat (22) and the center console (48). An inflation fluid source (122) provides inflation fluid for inflating the protection device (120). In the deployed condition, the protection device (120) has a first end portion (182a) positioned adjacent a seat bottom (24) of the vehicle seat (22) and an opposite second end portion (182b) terminating proximate an upper extent of the occupant's pelvis (152).
